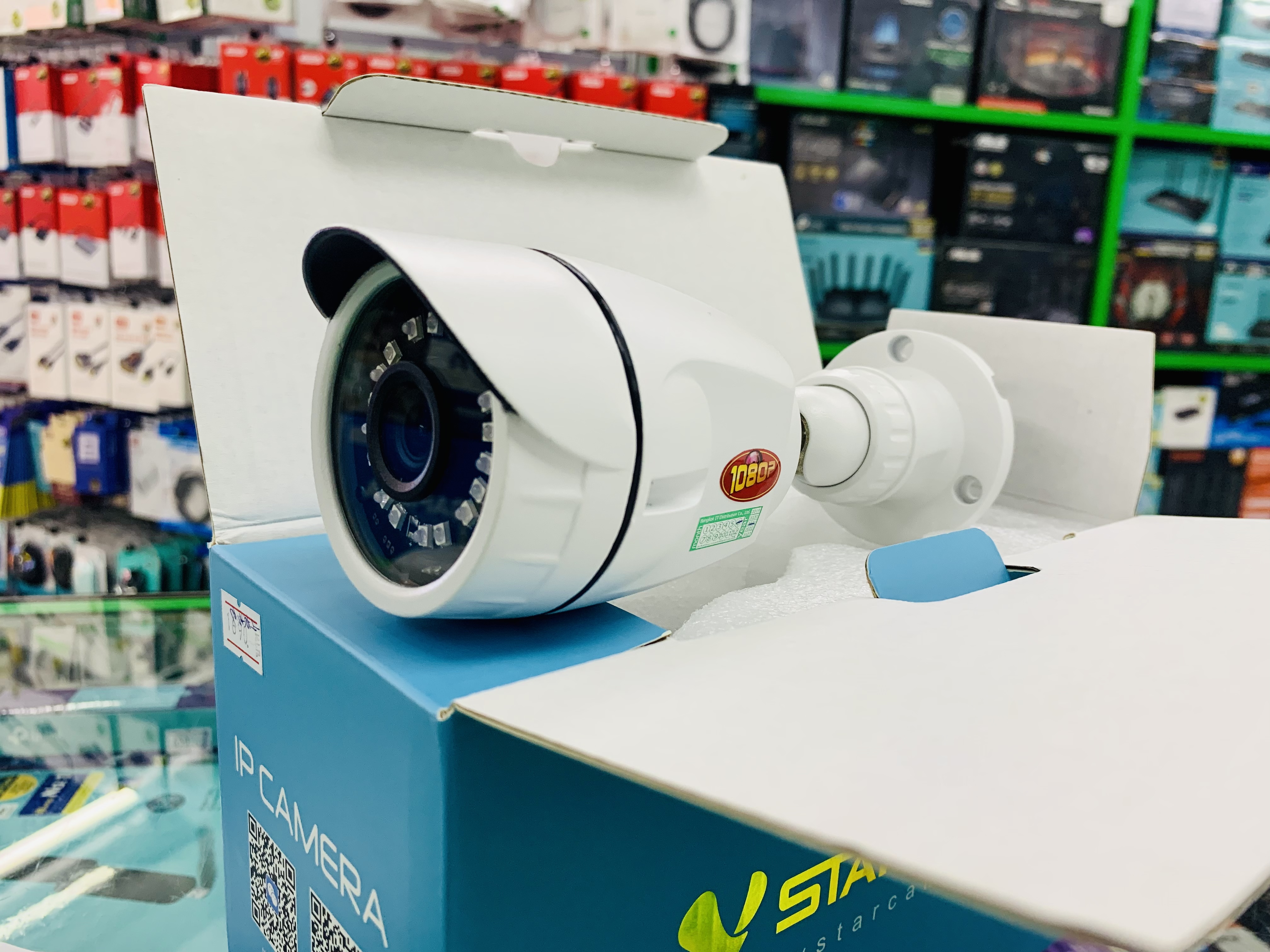

Smart IP Camera VSTARCAM C17S

System

Operation system

Embedded Linux OS

Online visitor

Support 4 visitors at the same time

Image Capture

Image sensor

Sony 1/2.9 inch 1080p Progressive Scan CMOS

Minimum Illumination

0.3~0.5Lux(Color mode), 0Lux(B&W mode)

Lens

4mm@F2.1

View Angle

91.7°（diagonal）

Nightvision

Dual Filter,IR-Cut，18pcs 850nm SMD IR LED，

IR irradiation distance:10~15m

Video

Encode format

H.264 main profile@levels:4.0/Motion-JPEG

Three Stream

Main Stream:1080p(1920X1080)@15fps

Sub Stream:360p(640X360)@15fps

Third Stream:180p(320X180)@10fps

Bit Rate

128～4096kbps

Maximum frame rate

15fps

Image adjustment

Contrast、Brightness、Saturation、Hue

Audio

N/A

Network

Ethernet

10Base-T / 100Base-TX, RJ45 connector

Protocols

TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P etc

Wireless LAN

IEEE802.11b/g/n

Wireless LAN Frequency

2.4~ 2.4835GHz

Wireless LAN security

64/128-bit WEP/WPA-PSK/WPA2-PSK data encryption

Pan-Tilt

N/A

Memory

Socket

TF Push-push socket,Maximum support 128GB

Alarm

Alarm Trigger

Motion detection

Physical

Environmental

Rated voltage

DC12V±5%

Power consumption

Related power:6W(IR on)

Operating condition

Temperature:-10～50℃,humidity:＜90%

Weight

Gross：TBD g(Note: in kind prevail)

Package size

204*99*122mm(L×W×H)
