HARDWARE FEATURES |
Interface |
1 10/100Mbps WAN/LAN Port 1 Reset Button 1 USB 2.0 Port 1 Mode Switch 1 WPS Button |
External Power Supply |
5V/2A |
Dimensions ( W x D x H ) |
2.91*2.64*0.87 in. (74*67*22mm) |
Antenna Type |
On-Board |
WIRELESS FEATURES |
Wireless Standards |
IEEE 802.11ac/n/a 5GHz IEEE 802.11b/g/n 2.4GHz |
Frequency |
2.4GHz and 5GHz |
Signal Rate |
5GHz: Up to 433Mbps(Only with 11AC Wireless Adapter); Up to 150Mbps with 11N Wireless Adapter 2.4GHz: Up to 300Mbps |
Reception Sensitivity |
11a 54M: -76dBm; 11ac VHT20 MCS8: -70dBm; 11ac VHT40 MCS9: -65.5dBm; 11ac VHT80 MCS9: -61.5dBm 2.4GHz: 11g 54M: -76dBm11n; HT20 MCS7: -74dBm; 11n HT40 MCS7: -71dBm |
Transmit Power |
CE: <20dBm(2.4GHz) <23dBm(5GHz) |
Wireless Functions |
Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
Wireless Security |
64/128-bit WEP,WPA / WPA2,WPA-PSK/ WPA2-PSK encryption |
SOFTWARE FEATURES |
Quality of Service |
WMM, Bandwidth Control |
Management |
Access Control Local Management Remote Management |
WAN Connection Type |
Dynamic IP/Static IP/PPPoE/ PPTP(Dual Access)/L2TP(Dual Access) |
DHCP |
Server, Client, DHCP Client List, Address Reservation |
Port Forwarding |
Virtual Server, Port Triggering, UPnP, DMZ |
Dynamic DNS |
DynDns, Comexe, NO-IP |
VPN Pass-Through |
PPTP, L2TP, IPSec |
Access Control |
Parental Control, Local Management Control, Host List, Access Schedule, Rule Management |
Firewall Security |
DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding |
Protocols |
Supports IPv4 |
Guest Network |
2.4GHz guest network × 1 5GHz guest network × 1 |
OTHERS |
Certification |
CE, FCC, RoHS |
Package Contents |

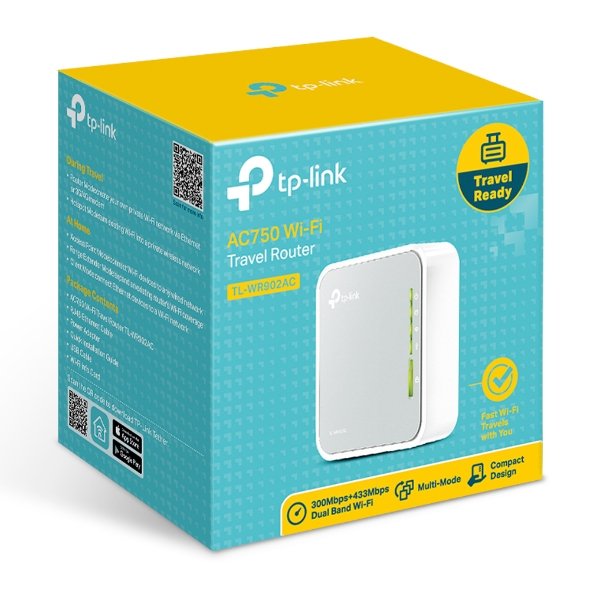

AC750 Wireless Travel Router TL-WR902AC Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
System Requirements |
Windows 10/8.1/8/7/Vista/XP, Mac OS or Linux-based operating system |
Environment |
Operating Temperature: 0℃~40 ℃ (32 ℉~104℉) Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
|
