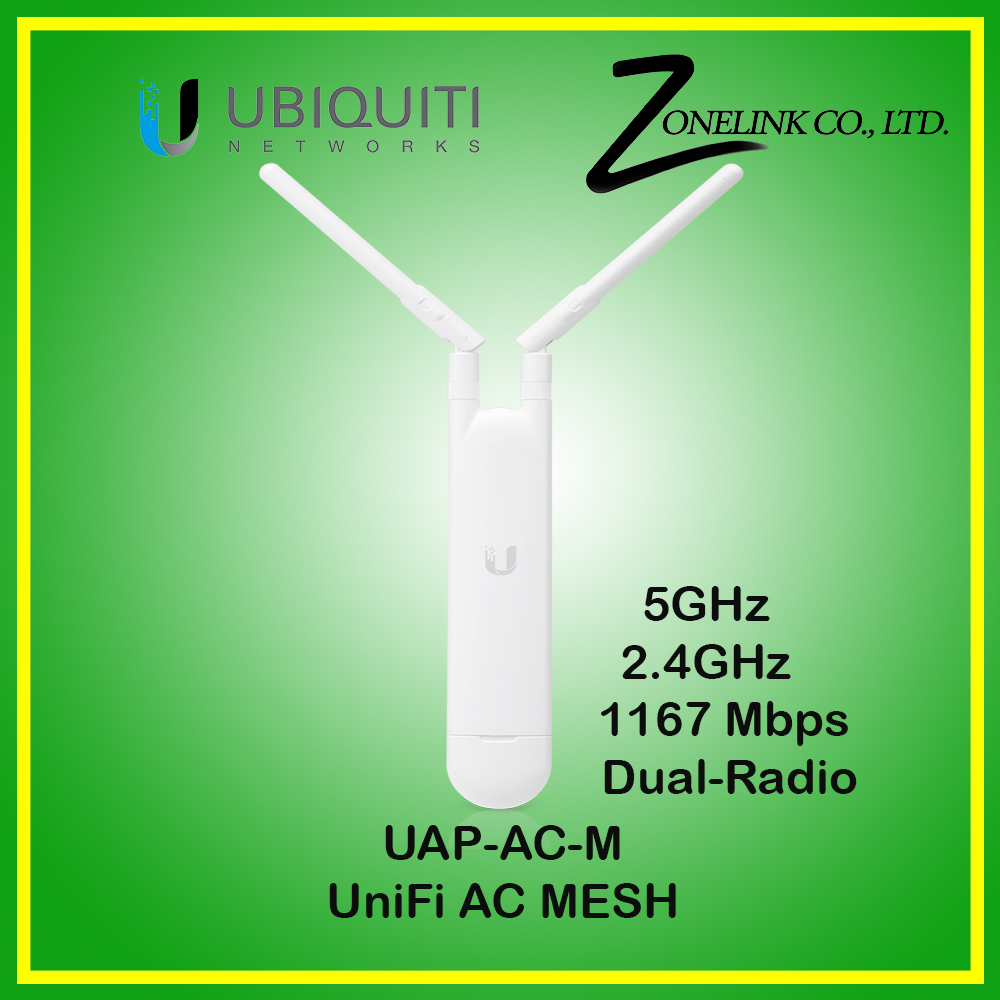

UBiQUiTi UniFi AC Mesh AP (UAP-AC-M) - N300/AC867 Mbps Simultaneous Dual Band 2.4/5.0GHz Indoor / Outdoor Wireless Access Point + Multi-Hop Wireless Uplink Supported, 802.11ac , 1-Port Gigabit + POE-24 (Gigabit POE Injector Included) + Mounting Kits + 802

UAP-AC-M

Dimensions

353 x 46 x 34.4 mm (13.9 x 1.81 x 1.35")

Weight

152 g (5.36 oz) with Antennas

Networking Interface

(1) 10/100/1000 Ethernet Port

Buttons

Reset

Power Method

24V Passive PoE (Pairs 4, 5+; 7, 8 Return); 802.3af Alternative A (Pairs 1, 2+; 3, 6 Return) (Supported Voltage Range: 44 to 57VDC)

Power Supply

24V, 0.5A Gigabit PoE Adapter*

Power Save

Supported

Maximum Power Consumption

8.5W

Maximum TX Power 2.4 GHz
5 GHz

20 dBm 20 dBm

Antennas 2.4 GHz 5 GHz

(2) External Dual-Band Omni Antennas 3 dBi 4 dBi

Wi-Fi Standards

802.11 a/b/g/n/ac

Wireless Security

WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)

BSSID

Up to 8 per Radio

Mounting

Wall/Pole/Fast-Mount (Kits Included)

Operating Temperature

-30 to 70° C (-22 to 158° F)

Operating Humidity

5 to 95% Noncondensing

Certi cations

CE, FCC, IC
