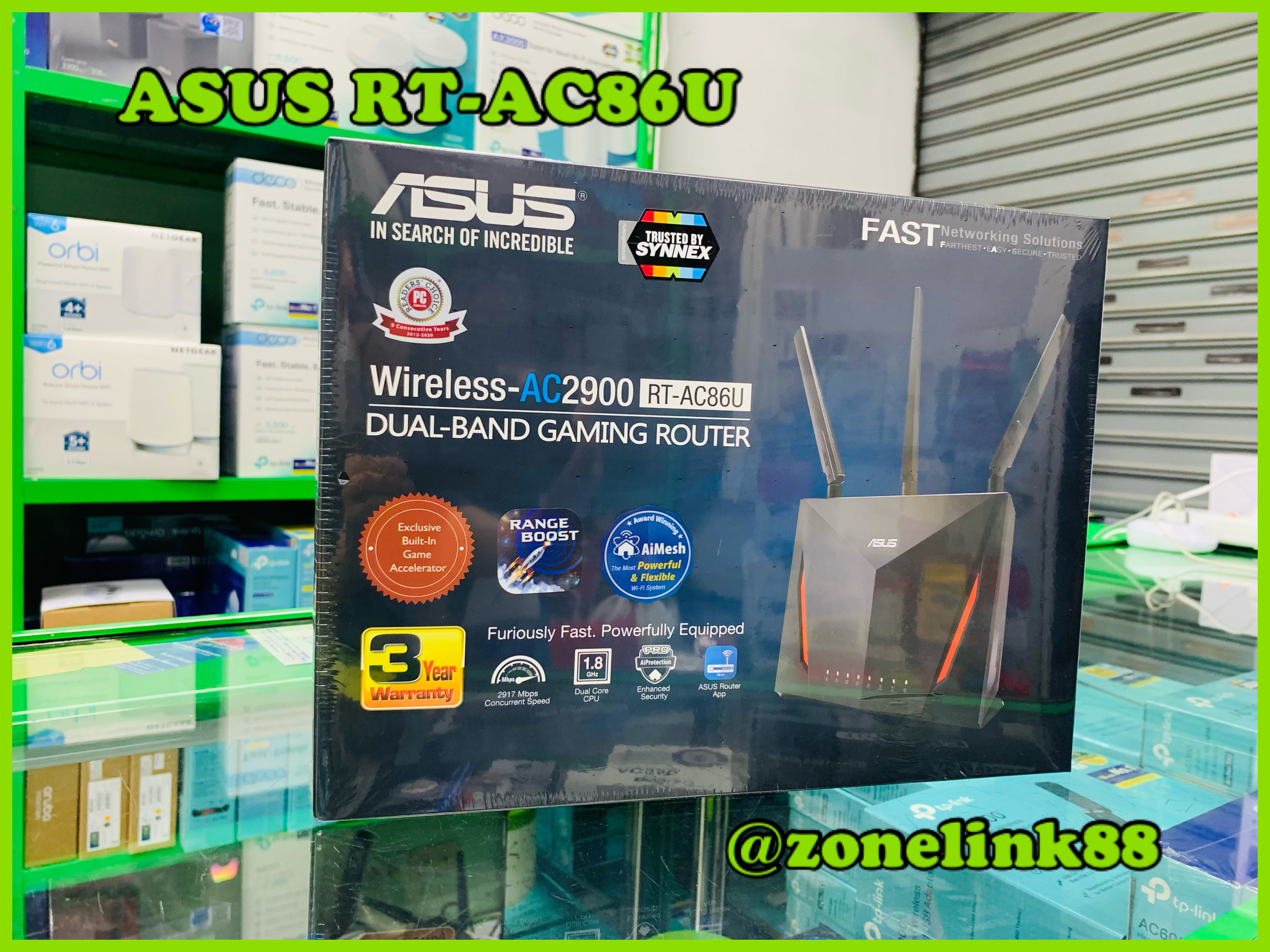

RT-AC86U AiMesh for Mesh Wifi AC2900 Dual Band Gigabit WiFi Gaming Router with MU-MIMO, AiProtection Pro network security powered by Trend Micro™, WTFast game accelerator and Adaptive QoS

Network Standard
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IPv4, IPv6

Product Segment
AC2900 ultimate AC performance: 750+2167 Mbps

Coverage
Very large homes

Data Rate
802.11a : 6,9,12,18,24,36,48,54 Mbps
802.11b : 1, 2, 5.5, 11 Mbps
802.11g : 6,9,12,18,24,36,48,54 Mbps
802.11n : up to 450 Mbps
802.11ac : up to 1734 Mbps
1024QAM (2.4GHz) : up to 750 Mbps
1024QAM (5GHz) : up to2167 Mbps

Antenna
External detachable antenna x 3
Internal antenna x 1

Transmit/Receive
MIMO technology
2.4 GHz 3 x 3
5 GHz 4 x 4

Processor
1.8 GHz dual-core processor

Memory
256 MB Flash
512 MB RAM

Wi-Fi Technology
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80 MHz bandwidth

Operating Frequency
2.4 GHz / 5 GHz

Encryption
64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , WPS support

Firewall & Access Control
Access control：Parental control, Network service filter, URL filter, Port filter

Management
UPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Trigger, Port Forwarding, DMZ, System Event Log

VPN Support
IPSec Pass-Through
PPTP Pass-Through
L2TP Pass-Through
PPTP server
OpenVPN server
PPTP client
L2TP client
OpenVPN client

WAN Connection Type
Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP

Utilities
Router setup wizard; Firmware restoration; Device discovery; printer setup utility

Ports
RJ45 for Gigabits BaseT for WAN x 1, RJ45 for 10/100/1000/Gigabits BaseT for LAN x 4
USB 2.0 x 1
USB 3.0 x 1

Button
WPS Button, Reset Button, Power Button, Wireless on/off Button, LED on/off Button

Power Supply
AC Input : 110V~240V(50~60Hz)
DC Output : 19 V with max. 1.75 A current

OS Support
Windows® 10
Windows® 8
Windows® 7
Mac OS X 10.6
Mac OS X 10.7
Mac OS X 10.8
Linux
