- Network Standard
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IPv4, IPv6
- Product Segment
AC1900 ultimate AC performance : 600+1300 Mbps
- Coverage
Large homes
- Data Rate
802.11a : 6,9,12,18,24,36,48,54 Mbps
802.11b : 1, 2, 5.5, 11 Mbps
802.11g : 6,9,12,18,24,36,48,54 Mbps
802.11n : up to 450 Mbps
802.11n TurboQAM : up to 600 Mbps
802.11ac : up to 1300 Mbps
- Connectivity Technology
LTE: Downlink 300 Mbps / Uplink 50 Mbps
HSPA+: Downlink 42.2 Mbps / Uplink 5.76 Mbps
4G FDD-LTE: 800 /1800 /2100 /2600
4G TDD-LTE: 2600
3G UMTS: 900 /2100
- Antenna
External antenna x 2
Internal 2dBi antenna x 1 for Wi-Fi
Detachable 3dBi antenna x 2 for Mobile
- Transmit/Receive
MIMO technology
2.4 GHz 3 x 3
5 GHz 3 x 3
- Memory
128 MB Flash
256 MB RAM
- Operating Frequency
2.4 GHz / 5 GHz
- Encryption
64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , WPS support
- Firewall & Access Control
Firewall：SPI intrusion detection,DoS protection
Access control：Parental control, Network service filter, URL filter, Port filter
- Management
UPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Trigger, Universal Repeater, System Event Log
- VPN Support
IPSec Pass-Through
PPTP Pass-Through
L2TP Pass-Through
PPTP server
OpenVPN server
PPTP client
L2TP client
OpenVPN client
- WAN Connection Type
Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP
Multicast Proxy support
Multicast Rate Setting support
- Ports
RJ45 for 10/100/1000/Gigabits BaseT for LAN x 4, RJ45 for 10/100/1000/Gigabits BaseT for WAN x 1
USB 3.0 x 1
SIM Card x 1
- Features
Airtime Fairness
Traffic Analyzer
Adaptive QoS
SmartQoS
- WMM
- User definable rules for IP/MAC/Port
- Upload and download bandwidth management
- ACK/SYN/FIN/RST/ICMP with highest priority
AiProtection
Parental Control
Guest Network : 2.4 GHz x 3, 5 GHz x 3
VPN server : IPSec Pass-Through, PPTP Pass-Through, L2TP Pass-Through, PPTP Server, OpenVPN Server
VPN client : PPTP client, L2TP client, OpenVPN client
Mac OS Backup
Enhanced media server (AiPlayer app compatible)
- Image : Jpeg
- Audio : mp3, wma, wav, pcm, mp4, lpcm, ogg
- Video : asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov
AiCloud personal cloud service
3G/4G data sharing
Printer Server
- Multifunctional printer support (Windows only)
- LPR protocol support
Download Master
- Support bt, nzb, http, ed2k
- Support encryption, DHT, PEX and magnet link
- Upload and download bandwidth control
- Download scheduling
AiDisk file server
- Samba and FTP server with account management
Dual WAN
IPTV support
Roaming Assist
- Button
WPS Button, Reset Button, Power Button, Wireless on/off Button
- LED Indicator
Power x 1
WAN x 1
Wi-Fi x 2
LAN x 1
USB x 1
WPS x 1
3G/4G signal x 4
- Power Supply
AC Input : 110V~240V(50~60Hz)
DC Output : 19 V with max. 2.37 A current
- OS Support
Windows® 10
Windows® 8.1
Windows® 8
Windows® 7
Windows® Vista
Windows® 2000
Windows® ME
Windows® XP
Windows® Server 2003
Windows® Server 2008
Mac OS X 10.1
Mac OS X 10.4
Mac OS X 10.5
Mac OS X 10.6
Mac OS X 10.7
Mac OS X 10.8
Mac OS X
Linux Kernel (Support Ubuntu only)
Linux
- Dimensions
247 x 76 x 168 ~ mm (WxDxH) (Without Bezel)
- Weight
795 g
- Color
Black
- Package Content

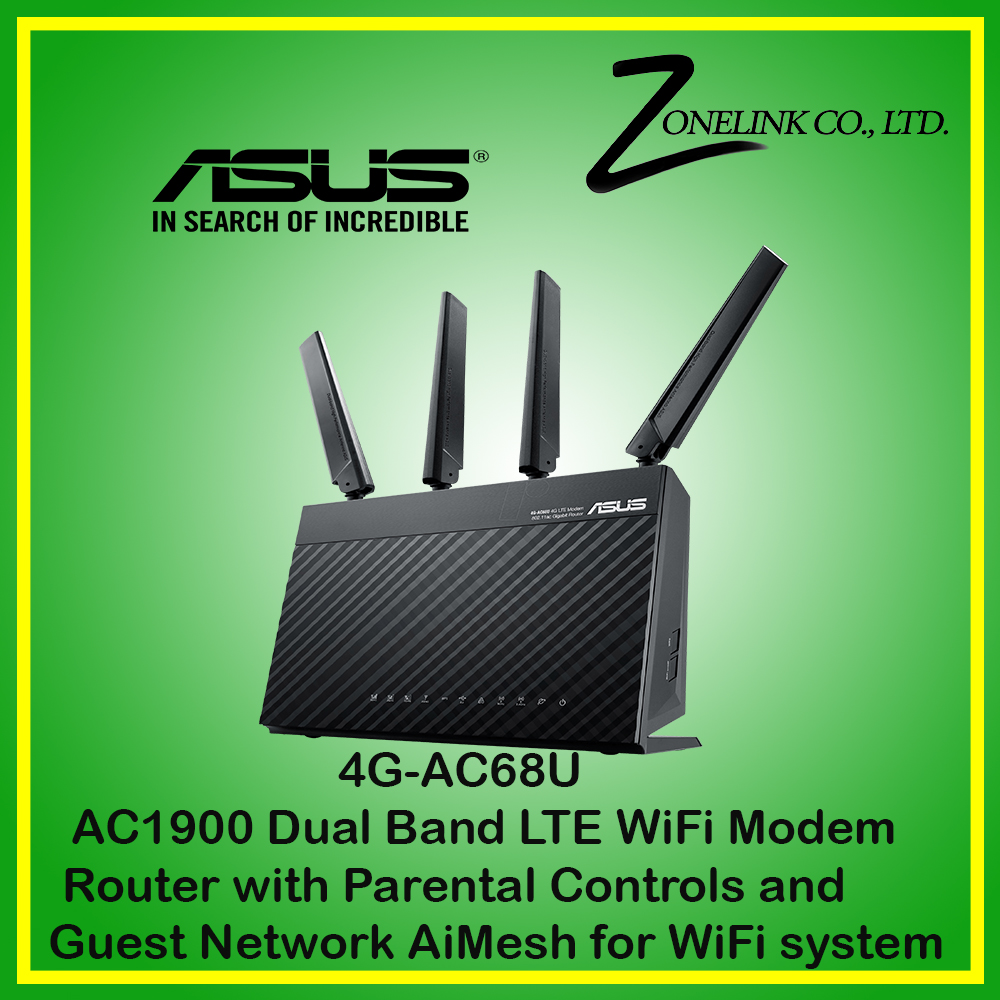

1 x 4G-AC68U Wireless-AC1900 LTE Router
1 x RJ-45 cable
1 x Power adapter
1 x QSG
- Router Special Features
3G/4G data sharing, AiCloud, Printer server, Download Master, AiDisK, Multiple SSIDs, Parental Control
- Operation mode
Wireless router mode
Range extender mode
Access point mode
Media bridge mode
|
