จำนวนชิ้น | ส่วนลดต่อชิ้น | ราคาสุทธิต่อชิ้น |
{{(typeof focus_pdata.price_list[idx+1] == 'undefined')?('≥ '+price_row.min_quantity):((price_row.min_quantity < (focus_pdata.price_list[idx+1].min_quantity - 1))?(price_row.min_quantity+' - '+(focus_pdata.price_list[idx+1].min_quantity - 1)):price_row.min_quantity)}} | {{number_format(((focus_pdata.price_old === null)?focus_pdata.price:focus_pdata.price_old) - price_row.price,2)}} บาท | {{number_format(price_row.price,2)}} บาท |
คงเหลือ | ชิ้น |
จำนวน (ชิ้น) |
- +
|
ซื้อเลย หยิบลงตะกร้า ซื้อเลย หยิบลงตะกร้า คุณมีสินค้าชิ้นนี้ในตะกร้า 0 ชิ้น
|
|
|
|
คุยกับร้านค้า | |
{{ size_chart_name }} |
|
หมวดหมู่ | PoE Gigabit Switch Tenda |
สภาพ | สินค้าใหม่ |
เพิ่มเติม | |
สภาพ | สินค้ามือสอง |
เกรด | |
สถานะสินค้า | |
ระยะเวลาจัดเตรียมสินค้า | |
เข้าร่วมโปรโมชั่น | |
ไฮไลท์ |

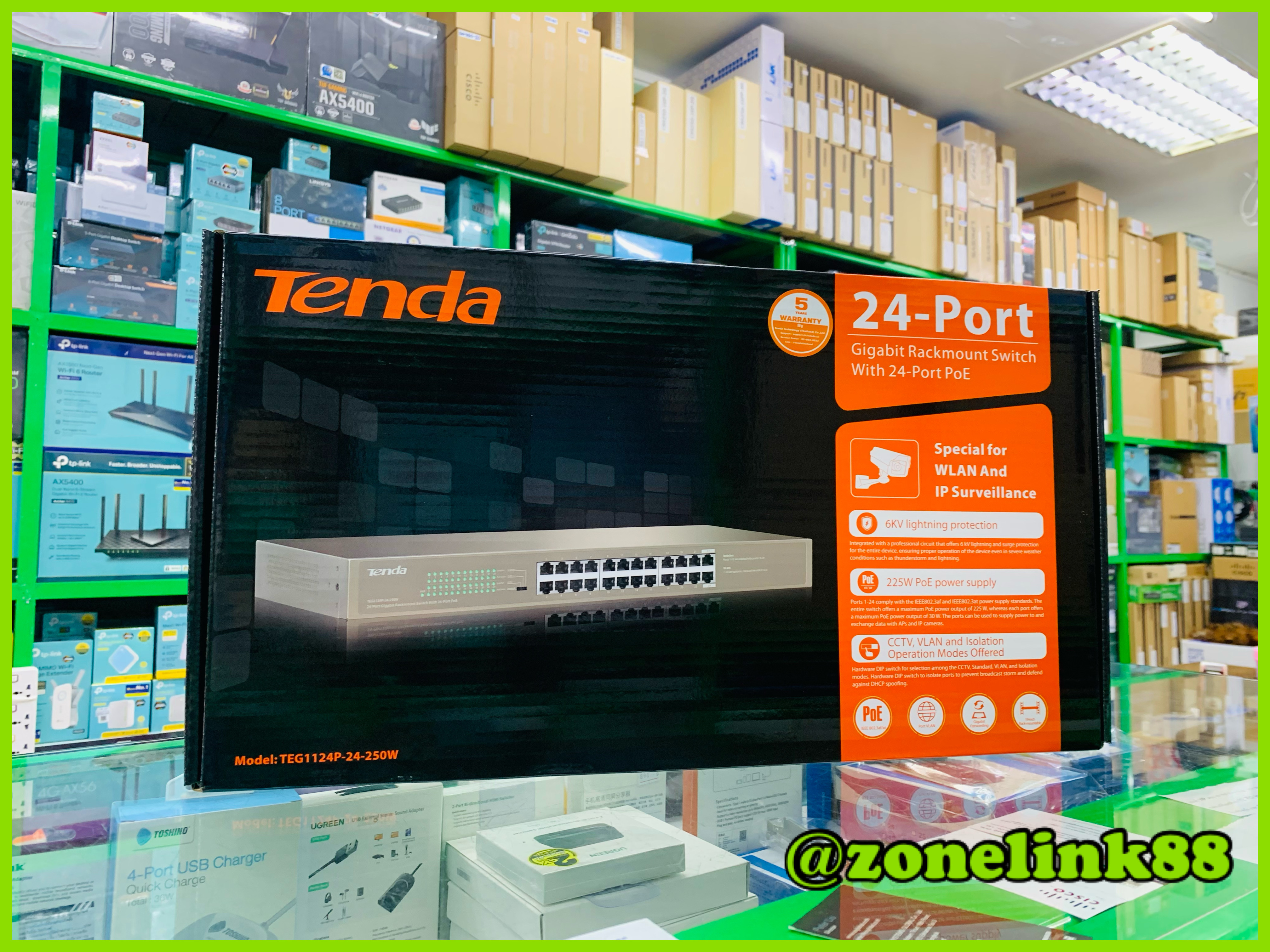

TEG1124P-24-250W is a Tenda PoE switch that offers 24 10/100/1000 Mbps Base-TX RJ45 ports. Ports 1-24 comply with the IEEE 802.3af standard (maximum PoE power output: 15.4 W) and 802.3at standard (maximum PoE power output: 30 W). The switch offers a maximum PoE power output of 225 W and can supply power to and exchange data with APs, IP cameras, and IP phones through CAT5 cables. It also provides simple management modes such as CCTV, VLAN and isolation to help reduce cabling costs of IP terminals like APs and IP cameras.
|
ข้อมูล |
น้ำหนัก
บาร์โค้ด
ลงสินค้า
อัพเดทล่าสุด
|
รายละเอียดสินค้า |
Network standards
IEEE 802.3/IEEE 802.3u/IEEE 802.3ab/IEEE 802.3x/ IEEE 802.3af/IEEE 802.3at
LED Indicator
24*Link/Act per device
24*PoE per device 1*Power per device Interfaces
24*10/100/1000 Base-T ports(Data/Power)
Transmission media
Recommended: CAT5/5e UTP or better
Fan quantity
1
Dimension
440.0mmx178.0mmx44.0mm
Level of protection
Lightning protection for ports: 6kV
Lightning protection for power: 6kV ESD: Air discharge: ±10kV Contact discharge: ±8kV Forwarding mode
Store-and-forward
Switch capacity
48 Gbps
Packet forwarding rate
35.7Mpps
Buffer
2M
MAC address table
8K
Jombo frame
N/A
PoE budget
Single port: AF: 15.4W, AT: 30W
Whole device: 225W Power consumption
/
Input voltage
100-240V AC 50/60Hz
Mounting
Desktop mounting: support
Wall mounting: support Rack mounting : support Environment
Operating Temperature: 0℃~45℃
Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing Certification
FCC、CE、RoHS
Software
![]() ![]() |
