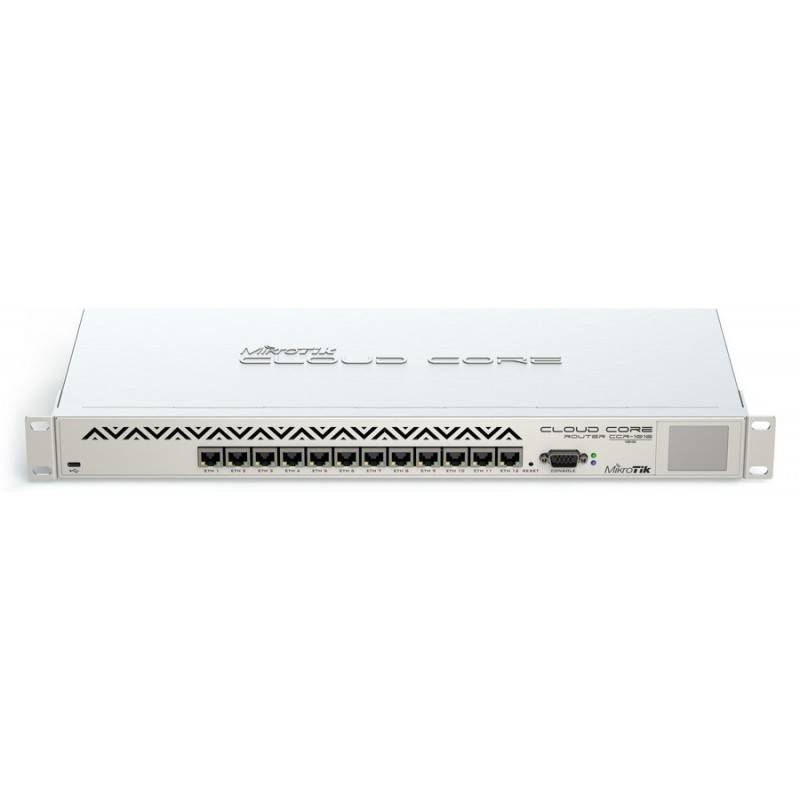

Mikrotik CCR1016-12G Cloud Core Router CPU 1.2GHz 16 Core Ram 2GB 12 Port Giagbit ROS LV 6

Product Specification

Overview

อุปกรณ์ Mikrotik Cloud Core Router รุ่น CCR1016-12G อุปกรณ์ Router ระดับ Top ใช้ทำระบบ Firewall, Bandwidth Management, Web Proxy, Dynamic Routing Protocol (RIP, OSPF, BGP), Secure Tunnel (EoIP, PPPoE, PPTP, L2TP, OVPN 200 Connection), VLAN, P2P Firewall Rules, Nat Rules, Hotspot Gateway (Unlimit User), Radius Client, Unlimited Queues, User Manager (Unlimit Active Session), Synchronous Interface, Core Router

CPU

Tilera Tile-Gx16 CPU (16-cores, 1.2Ghz per core)

Memory

SODIMM DDR Slot, 2GB ติดตั้งภายใน

Throughput

18 ล้าน PPS (Package 64Byte)

Operating System

RouterOS v6 (64bit)

Hotspot Account

รองรับได้ไม่จำกัดจำนวน Account (UnLimit)

Data storage

512MB Onboard NAND

Ethernet

Port RJ-45 จำนวน 12 Port ความเร็ว 10/100/1000 Mbps.

miniPCI

n/a

Serial port

1 Port RS232 (DB9)

Memory Cards

1 MicroSD Slot

Power options

IEC C14 standard connector 110/220V, Power jack (BU model only) and Passive PoE

24V. PSU included in both models.

Dimensions

1U case: 355x145x55 mm

Weight

1,200g

Operating Temperature

-20C ถึง +70C
