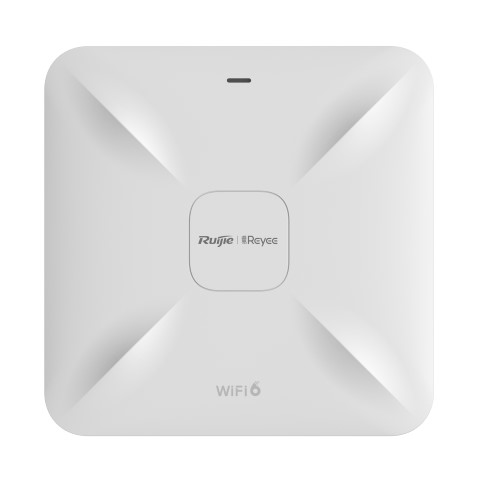

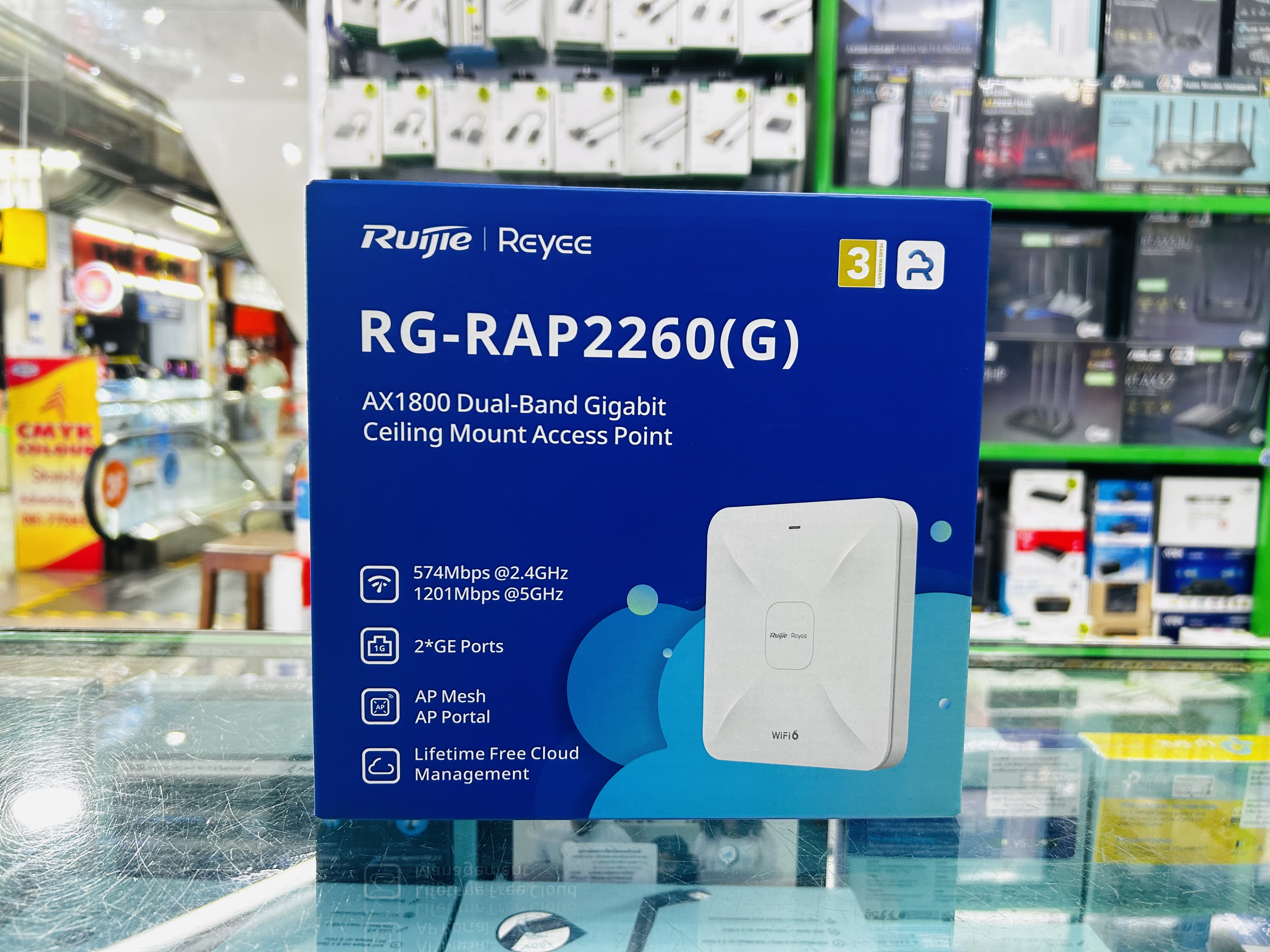

RG-RAP2260(G) Reyee Wi-Fi 6 AX1800 Ceiling Access Point

Model

RG-RAP2260(G)

Radio

Dual-stream dual-band

Protocol

Concurrent 802.11ax, 802.11ac wave2/wave1, 802.11a/b/g/n

Operating Bands

802.11b/g/n/ax : 2.4G - 2.4835GHz
802.11a/n/ac/ax  : 5G : 5.150 - 5.350GHz, 5.725 - 5.850GHz (ountry specific)

Antenna

Internal antennas (2.4G: 3dBi, 5G: 3dBi)

Spatial Streams

2.4G 2x2 MIMO
5G 2x2 MIMO

Max Throughput

Up to 574Mbps at 2.4G
Up to 1201Mbps at 5G
1.775Gbp per AP

Modulation

OFDM : BPSK@6/9Mbps, QPSK@12/18Mbps, 16QAM@24Mbps, 64QAM@48/54Mbps
DSSS : DBPSK@1Mbps, DQPSK@2Mbps and CCK@5.5/11Mbps
MIMO-OFDM : BPSK, QPSK, 16QAM, 64QAM, 256QAM and 1024QAM
OFDMA

Receive Sensitivity

11b : -96dBm (1Mbps) , -93dBm (5Mbps) , -89dBm (11Mbps)
11a/g : -91dBm (6Mbps) , -85dBm (24Mbps)，-80dBm (36Mbps) , -74dBm (54Mbps)
11n : -90dBm (MCS0) , -70dBm (MCS7) , -89dBm (MCS8) , -68dBm (MCS15)
11ac : 20MHz : -88dBm (MCS0) , -63dBm (MCS9)
11ac : 40MHz : -85dBm (MCS0) , -60dBm (MCS9)
11ac : 80MHz : -85dBm (MCS0) , 60dBm (MCS9)
11ax : 80MHz : -82dBm (MCS0) , -57dBm (MCS9), -52dBm (MCS11)

Maximum Transmit Power

5.725 - 5.850GHz : ≤20dBm (EIRP)
5.150 - 5.250GHz : ≤20dBm (EIRP)
2.4 - 2.4835GHz : ≤20dBm (EIRP)

Adjustable Power

1dBm

Dimensions

194mm×194mm×35mm (excluding mounting kits)

Weight

0.56kg (excluding mounting kits)

Service Ports

2 Port 10/100/1000Base-T Ethernet ports

PoE/LAN1 port supports PoE

Management Port

NA

LED Indicator

Single indicator (green light)

Power Supply

Local power supply, DC 12V/1.5A (Note: The power adapter is sold as an optional accessory), 802.3at PoE (Warning：802.3af or non-standard POE adapter may cause unknown issues. Please use Ruijie POE+ switch or 802.3at POE adapter as power supplier)
