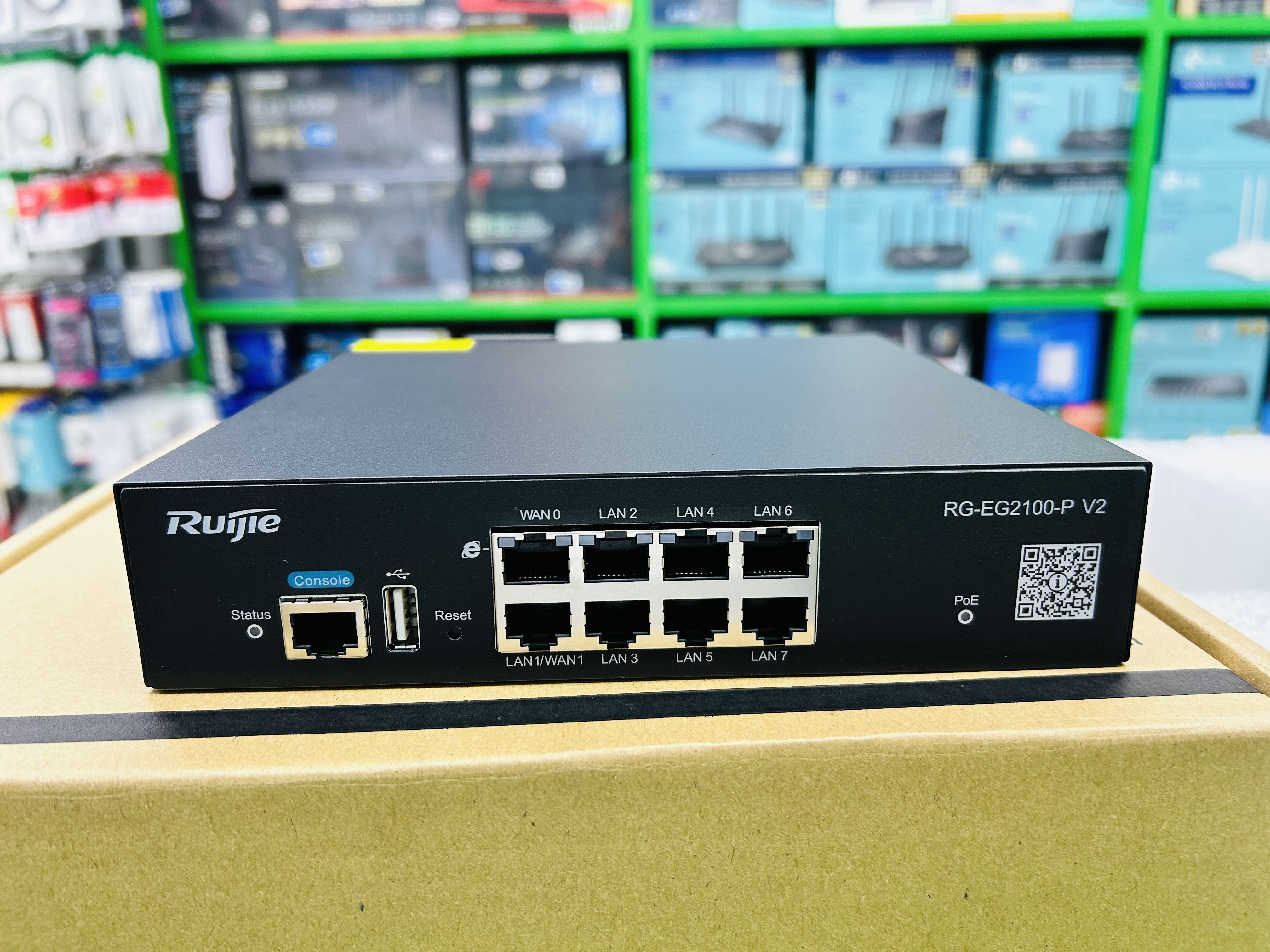

Ruijie RG-EG2100-P v2 Smart Access Gateway 2 Wan Gigabit, VPN, Firewall, L7 DPI

ardware Specification

CPU

Multi-core MIPS

Fixed Ports

8 1000BASE-T ports (7x POE/POE+)

WAN Ports

Upto 2

Flash

4GB EMMC

Hard Disk

N/A

Memory

512M

Performance & Feature

Performance

1000Mbps (1518 bytes)

450Mbps (512bytes)

70Mbps (64 bytes)

Concurrent Session

100,000

Recommended Concurrent User

300

Portal Authentication Capacity

100 (Max Concurrent Users)

Portal Authentication Type

Username/Password Auth (Local, Windows-based AD/LDAP Integration)

One-click Authentication;

Guest Voucher (Ruijie Cloud required);

Seamless Authentication (Portal)

Support

App Caching

Support

Cache Capacity

750MB

Cache Resources

Android APK files (non-https server required)

Network Protocol

Support TCP/IP protocols, including IP, ICMP, TCP, UDP, etc.

Support multiple routing protocols, including static routing, RIP (V1 / V2) and OSPF

Support DHCP Relay and DHCP Server

Support PPPoE Client

Support NAT and multiple NAT ALG including FTP, H.323, DNS, etc.

Support ARP, trusted ARP, proxy ARP, etc.

Support Ping and Traceroute fault detection

Application Visibility

Support self-developed 43 types of applications / more than 120 application features, customizable protocol identification:

P2P: BitTorrent, eMule, Thunder, EDONKEY, FlashGet & etc.

Multimedia: YouTube, Facebook Video, WebEx Conference & etc.

Social Media: Facebook, Twitter, LinkedIn, Pinterest & etc.

VOIP/Chat: Skype, Viber, Google Hangout, Jabber, Facebook Messenger & etc.

Instant Messaging/Email: Gmail, MSN, QQ, YAHOO & etc.

Software Update: Window, McAfee, Kaspersky, ESET & etc.

Cloud-based File Collaboration: GoogleDrive, Dropbox, OneDrive, iCloud & etc.

Enterprise Application：HTTP, FTP, SMTP, POP3, IMAP, Telnet, LOTUS-NOTES, SQL Server, Oracle, Mysql, HTTPS & etc.

URL Filtering

Support custom URLs
Support remote HTTP automatic URL library upgrade
Local log storage (NAT log, traffic log, URL log, etc.)
Support storage on external log server

WAN Load Balancing

Support (upto 2 WAN Port)

IPsec VPN Tunnel

16

Network Security

Anti-ARP Spoofing
Defense against malicious attacks from internal and external networks
Support secure address binding
Block WAN Ping
Prevent Port Scan Attack
Prevent Fragmentation Attack
Prevent ICMP Flood Attack
Prevent Teardrop Attack
Prevent Ping of Death Attack
Prevent Land Attack
Prevent Smurf / Fraggle attack
Prevent SYN Flood Attack

Ruijie Cloud Integration Feature

Support device health monitoring status

Support centralized configuration change management & backup

Support Top 10 Application/User traffic visualization

Support device firmware management

Support event-based alarm notification

Other Features

Integrate with AAA software to support multiple authentication modes

Other Features

Service and Support

Support push advertising page

Support multi-link load balancing

Support remote HTTP online upgrade for signature library, software version, etc.

Lifetime Free signature library upgrade

Rack Height

1U

Weight

2KG

Power Supply

100-240V~,50-60Hz,3A

PoE Budget

135W

Power Consumption

<150W

Dimensions (W x D x H) (mm)

200×200x43.6

Operating Temperature

0°C to 45°C

Operating Humidity

10% to 90%RH
