IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IPv4, IPv6

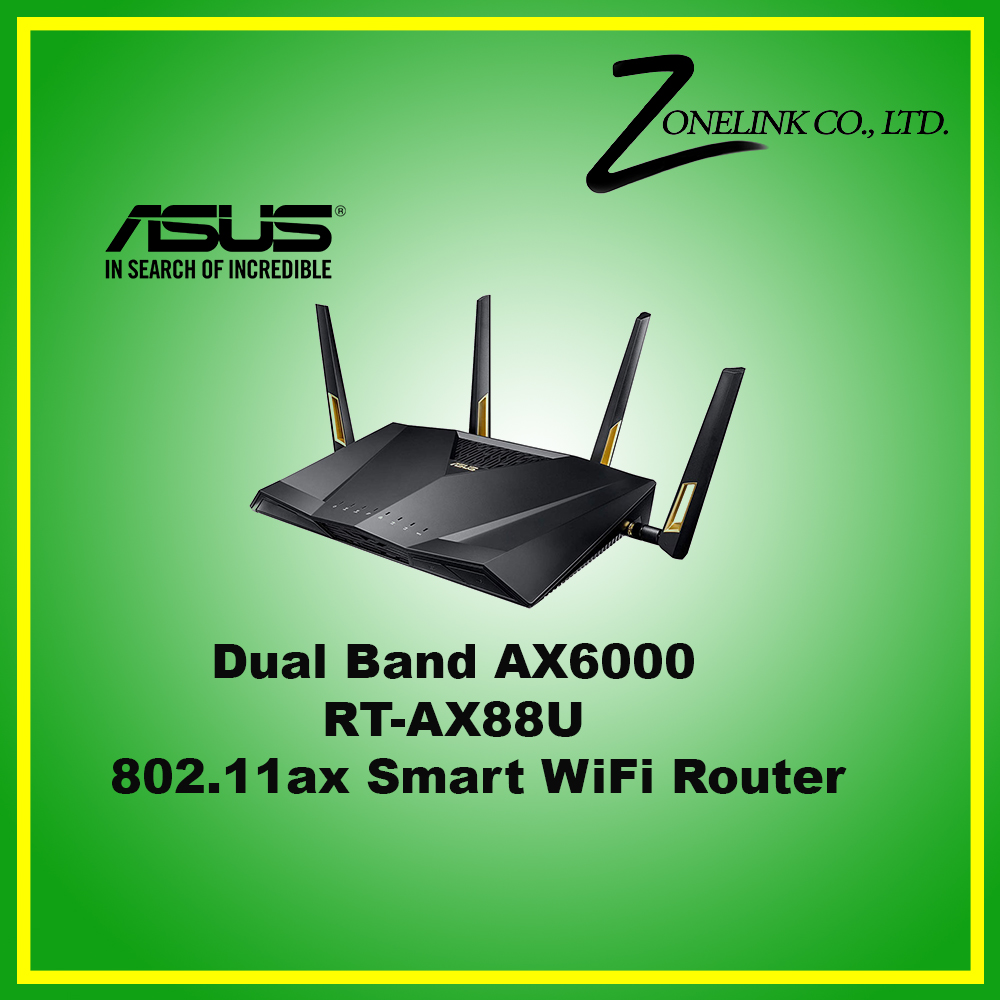

AX6000 ultimate AX performance

Very large homes

802.11ax (2.4GHz) : up to 1148 Mbps
802.11ax (5GHz) : up to 4804 Mbps

External antenna x 4

2.4 GHz 4 x 4
5 GHz 4 x 4

1.8 GHz quad-core processor

256 MB Flash
1 GB RAM

OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth

2.4 GHz / 5 GHz

WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , WPS support

Firewall: SPI intrusion detection, DoS protection
Access control：Parental control, Network service filter, URL filter, Port filter

UPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Trigger, Port Forwarding, DMZ, System Event Log

IPSec Pass-Through
PPTP Pass-Through
L2TP Pass-Through
PPTP server
OpenVPN server
PPTP client
L2TP client
OpenVPN client

Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP

Router setup wizard; Firmware restoration; Device discovary; printer setup utility

RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 8
USB 3.1 Gen 1 x 2

WPS Button, Reset Button, Power Button, Wireless on/off Button, LED on/off Button

Link Aggregation
- 802.3ad
MU-MIMO
Traffic Analyzer
Adaptive QoS
WTFast Gamers Private Network
AiProtection Pro
Parental Control
Guest Network : 2.4 GHz x 3, 5 GHz x 3
VPN server : PPTP Server, OpenVPN Server, IPSec server
VPN client : PPTP client, L2TP client, OpenVPN client
NAT Pass-Through :PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay
Mac OS Backup
Enhanced media server (AiPlayer app compatible)
- Image : Jpeg
- Audio : mp3, wma, wav, pcm, mp4, lpcm, ogg
- Video : asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov
AiCloud personal cloud service
3G/4G data sharing
Printer Server
- Multifunctional printer support (Windows only)
- LPR protocol support
Download Master
- Support bt, nzb, http, ed2k
- Support encryption, DHT, PEX and magnet link
- Upload and download bandwidth control
- Download scheduling
AiDisk file server
- Samba and FTP server with account management
Dual WAN
IPTV support
Roaming Assist

Power x 1
Wi-Fi x 2
WAN x 1
LAN x 1
USB x 2
WPS x 1

AC Input : 110V~240V(50~60Hz)
DC Output : 19 V with max. 2.37 A current

Windows® 10
Windows® 8
Windows® 7
Mac OS X 10.6
Mac OS X 10.7
Mac OS X 10.8

11.8 x 7.4 x 2.4 ~ " (WxDxH) (Without Bezel)

1010 g

Wireless router mode
Access point mode
Media bridge mode
