| รายละเอียดสินค้า |
| Image Sensor |
1/2.7”Progressive Scan CMOS |
| Shutter Speed |
Self-adaptive shutter |
| Lens |
2.8mm @ F2.0, viewing angle: 114° (Diagonal), 96° (Horizontal), 51° (Vertical) 4mm @ F2.0, viewing angle: 95° (Diagonal), 80° (Horizontal), 42° (Vertical) |
| Minimum Illumination |
0.01 lux @ (F2.0, AGC ON), 0 Lux with IR |
| Lens Mount |
M12 |
| Day / Night Switch |
IR-Cut filter with auto-switching |
| DNR |
3D DNR |
| WDR |
Digital WDR |
| BLC |
Supports |
| IR Night Vision Distance |
Up to 98 ft / 30 m
| Video & Audio |
| Max. Resolution |
2880 × 1620 pixels |
| Frame Rate |
Max: 30fps; Self-Adaptive during network transmission |
| Video Compression |
H.265 / H.264 |
| Video Bit Rate |
Quad HD+; Full HD; HD; Standard. Adaptive bit rate. |
| Audio Bit Rate |
Self-Adaptive |
| Max. Bitrate |
4 Mbps
| Specifications |
| Model |

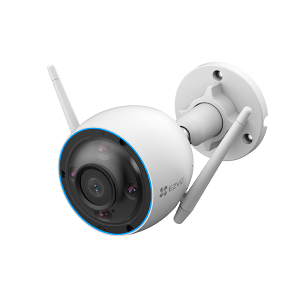

CS-H3-R100-1J5WKFL |
| General |
| Dimensions |
75.5 × 75.5 × 155 mm (2.97 × 2.97 × 6.10 inch) |
| Package Dimensions |
227 × 100 × 92 mm (8.94 × 3.94 × 3.62 inch) |
| Weight |
Net weight: 433 g (15.27 oz) With package: 652 g (23.00 oz) |
| IP Grade |
IP67 |
| Operating Conditions |
-30 °C ~ 60 ºC (-22 °F ~ 140 °F ) Humidity 95% or less (non-condensing) |
| Camera |
| Image Sensor |
1/2.7”Progressive Scan CMOS |
| Shutter Speed |
Self-adaptive shutter |
| Lens |
2.8mm @ F2.0, viewing angle: 114° (Diagonal), 96° (Horizontal), 51° (Vertical) 4mm @ F2.0, viewing angle: 95° (Diagonal), 80° (Horizontal), 42° (Vertical) |
| Minimum Illumination |
0.01 lux @ (F2.0, AGC ON), 0 Lux with IR |
| Lens Mount |
M12 |
| Day / Night Switch |
IR-Cut filter with auto-switching |
| DNR |
3D DNR |
| WDR |
Digital WDR |
| BLC |
Supports |
| IR Night Vision Distance |
Up to 98 ft / 30 m |
| Video & Audio |
| Max. Resolution |
2880 × 1620 pixels |
| Frame Rate |
Max: 30fps; Self-Adaptive during network transmission |
| Video Compression |
H.265 / H.264 |
| Video Bit Rate |
Quad HD+; Full HD; HD; Standard. Adaptive bit rate. |
| Audio Bit Rate |
Self-Adaptive |
| Max. Bitrate |
4 Mbps |
| Network |
| Wi-Fi Standard |
IEEE802.11b, 802.11g, 802.11n |
| Frequency Range |
2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth |
Supports 20 MHz |
| Security |
64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK |
| Transmission Rate |
11b: 11 Mbps, 11g: 54 Mbps, 11n: 150 Mbps |
| Wi-Fi Pairing |
AP Pairing |
| Protocol |
EZVIZ Cloud Proprietary Protocol |
| Interface Protocol |
EZVIZ Cloud Proprietary Protocol |
| Wired Network |
RJ45 × 1 (10M / 100M Adaptive Ethernet Port)
| Function |
| Detection |
AI-Powered Human / Vehicle Shape Detection, Waving-Hand Detection, Motion Detection |
| Customized Alert Area |
Supports |
| Integration |
Works with Alexa, Google Assistant, IFTTT |
| General Function |
Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark
| Storage |
| Local Storage |
Supports microSD card (Up to 512 GB) |
| Cloud Storage |
Supports EZVIZ CloudPlay storage (Subscription required) |
| Power |
| Wiring |
Hard-Wired |
| Power Supply |
DC 12V / 1A |
| Power Consumption |
Max. 8W |
|
|
|
|
|
