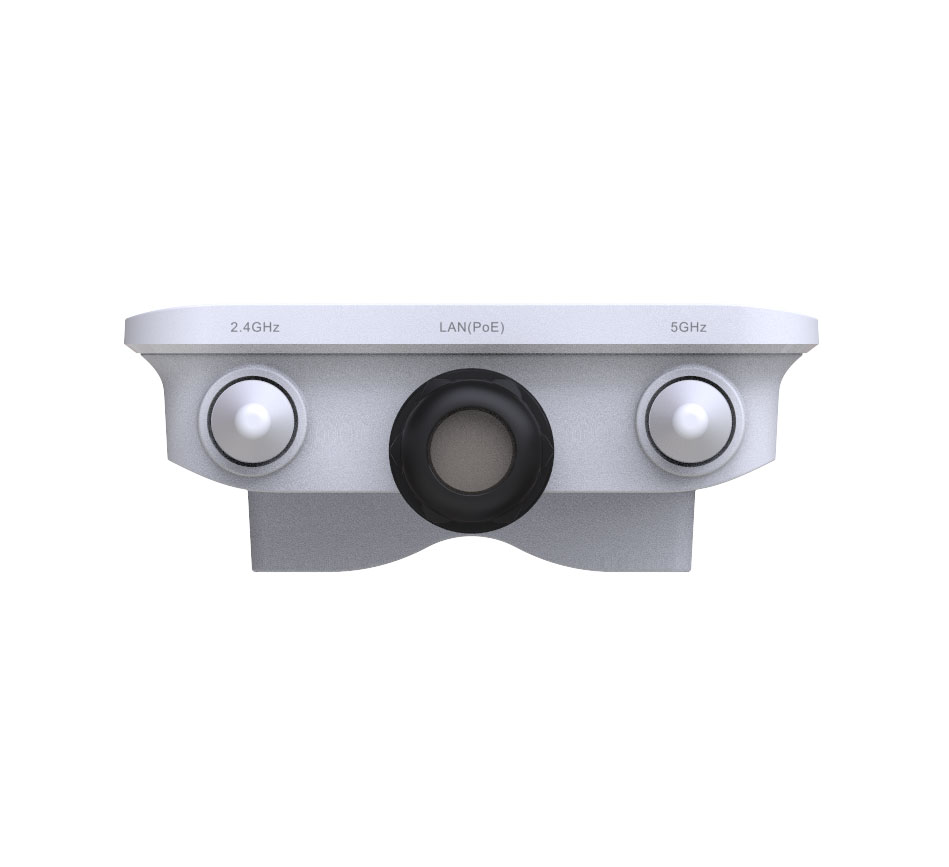

ENH1350EXT Wi-Fi 5 Wave 2 AC1300 Outdoor Wireless Access Point MU-MIMO Wireless Access Point Accommodates High User Capacities & Ultra-Fast Speeds

Technical Specifications

Standards
IEEE 802.11b/g/n on 2.4GHz
IEEE802.11a/n/ac on 5GHz

Antenna
Four (4) External 5 dBi Dual-Concurrent Omni-Directional Antenna
SMA-Type

Physical Interface
1 x 10/100/1000 Gigabit Ethernet Ports
1 x Reset Button

LED Indicators
1 x Power
1 x LAN
1 x 2.4 GHz
1 x 5 GHz

Power Source
IEEE 802.11af/at Compliant Source
Power-over-Ethernet: Proprietary 24V PoE
IEEE 802.11e Compliant Source
Active Ethernet (PoE)

Maximum Power Consumption
12.6W

Surge Protection
1KV

ESD Protection
Contact: 4KV
Air: 8 KV

Wireless & Radio Specifications

Operating Frequency
Dual-Radio Concurrent 2.4GHz & 5 GHz

Operation Modes
Access Point Mode (AP Mode)
Client Bridge Mode (CB Mode)
WDS: AP Mode and Bridge Mode (Mesh Mode Coming Soon)

Frequency Radio
2.4GHz: 2400 MHz ~ 2835 MHz
5GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725MHz ~ 5850MHz

Transmit Power
2.4 GHz: 23 dBm
5 GHz: 23 dBm

Tx Beamforming (TxBF)

Radio Chains/Spatial Stream
2x2:2

SU-MIMO
Two (2) Spatial Stream SU-MIMO up to 1267 Mbps to a single client

MU-MIMO
Two (2) Spatial Stream MU-MIMO up to 1267 Mbps to two (2) MU-MIMO capable wireless devices simultaneously

Supported Data Rates (Mbps):
2.4 GHz: Max 400
5 GHz: Max 867
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 400 Mbps (MCS0 to MCS15)
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)

Supported Radio Technologies
802.11b: Direct-Sequence Spread Spectrum (DSSS)
802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM)
802.11n/ac: 2x2 MIMO with 2 Streams

Channelization
802.11ac supports very high throughput (VHT)—VHT 20/40/80 MHz
802.11n supports high throughput (HT)—HT 20/40 MHz
802.11n supports very high throughput (VHT) under the 2.4 GHz radio—VHT (256-QAM)
802.11n/ac packet aggregation: AMPDU, ASPDU

Supported Modulation
802.11b: BPSK, QPSK, CCK
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM

Management

Multiple BSSID
Supports 16 SSIDs (8 SSIDs per band)

VLAN Tagging
Supports 802.1q SSID-to-VLAN Tagging
Cross-band VLAN Pass Through
Management VLAN

QoS (Quality of Service)
Complaint with IEEE 802.11e Standard

Band Steering
RSSI Threshold
Traffic Shaping
Save Configuration as Default
Auto Transmit Power
Auto Channel Selection
Site Survey
PMK Caching

Control Features
Distance Control (ACK Timeout)
Multicast Supported
Fast Roaming
Email Alerts
Wi-Fi Scheduler
Client Traffic Status
Guest Network
RADIUS Accounting
Power Save Mode (U-APSD Support)
CLI Support

SNMP
v1, v2c, v3

MIB
I/II, Private MIB

Wireless Security
WEP Encryption 64/128/152 bit
WPA/WPA2 Enterprise (WPA-EAP using TKIP or AES)
Hide SSID in Beacons
MAC Address Filtering, Up to 64 MACs per SSID
Wireless STA (Client) Connected List
Https
SSH
Client Isolation

Environmental & Physical

Temperature Range
Operating: -4º~140ºF/-20ºC~60ºC
Storage: -22Fº~176ºF/-40ºC~80ºC

Humidity (non-condensing)
Operating: 90% or less
Storage: 90% or less

Waterproof & Dustproof
IP67-Rated Enclosure

Device Dimensions & Weights

ENH1350EXT Device
Width: 4.37” (111.2 mm)
Length: 6.83” (173.6 mm)
Height” 1.19” (30.29 mm)

Package Contents
1 - ENH1350EXT Dual-Band AC1300 Outdoor Access Point
1 - Power Adapter (54V/0.6A)
1 - PoE Adapter (EPA5006GR)
2 - Pole-Mounting Brackets
1 - Wall-Mount Screw Set
2 - 2.4GHz 5dBi SMA Antennas
2 - 5GHz 5dBi SMA Antennas
1 - Quick Installation Guide

Certifications
FCC
CE

Warranty
1 Year
