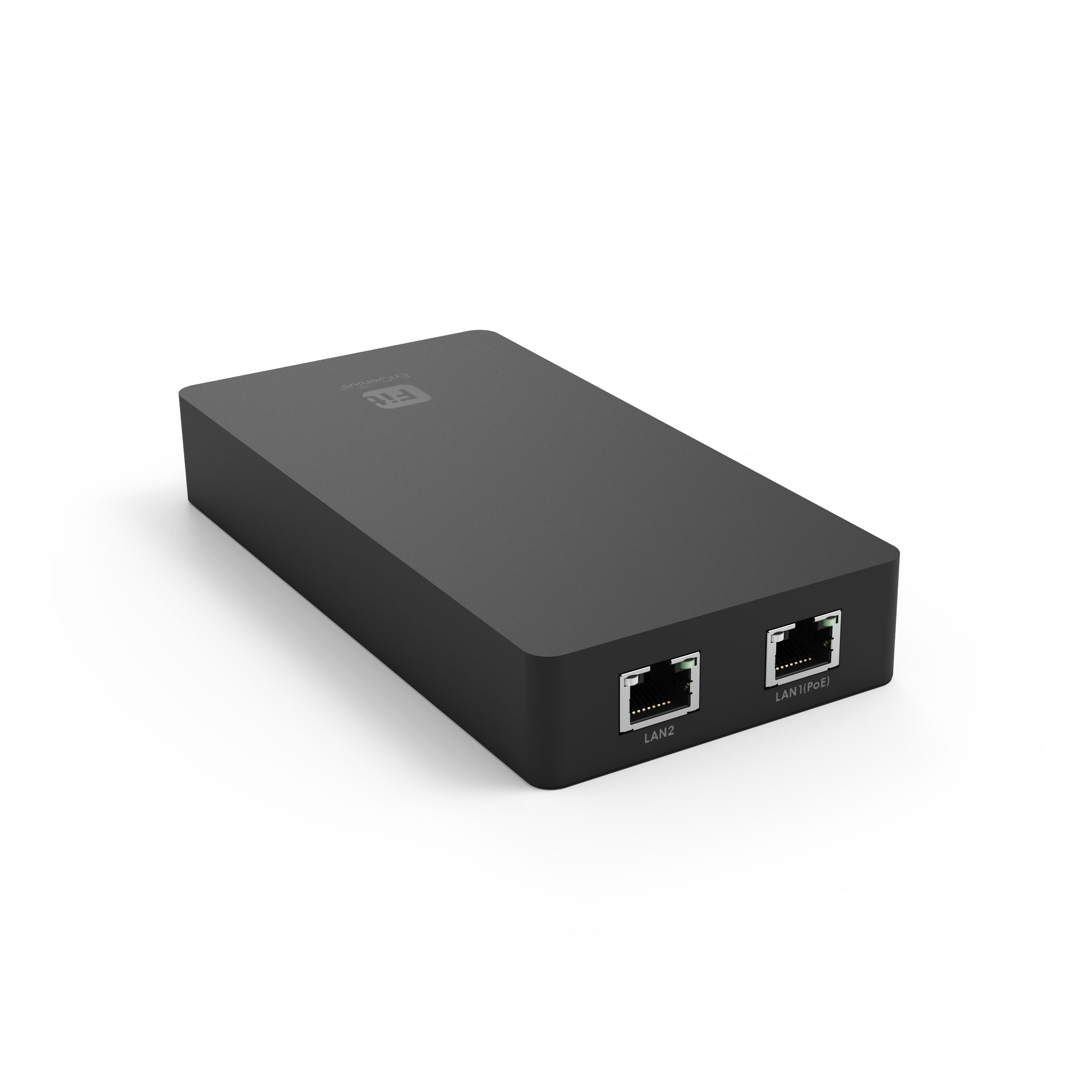

EnGenius Fit On-Premises Management Network Controller FitController For small businesses who need to manage access points and switches quickly and easily

Model
Qualcomm Cypress IPQ6010

Clock Rate
Quad-Core Cortex A53 1.8 GHz

Hardware Encryption Acceleration
Yes

Memory

System Memory
DDR4 1GB x 2

Storage

eMMC
8GB (MLC)

Interfaces and LEDs

Interfaces and LEDs
2 x 10/100/1000 Mbps RJ45 ports (1 x PoE)
1 x Micro SD Slot
1 x DC-Input Jack
1 x Reset Button
1 x Power LED (Orange)
2 x LAN LED (Green)

LED Indicators
1 x Power
2 x LAN

Power Source
Power-over-Ethernet: 802.3af Input
12VDC /1A Power Adapter (Not Included)

Maximum Power Consumption
Under 5W

Environmental & Physical

Operating
Temperature: 0°C~40°C (32°F~104°F)
Humidity: 0%～90% typical

Storage
Temperature: -40°C~80°C (-40°F~176°F)
Humidity: 0%～90% typical

Device Dimensions & Weights

FitController Device
Weight: 0.36 lb (165g)
Length: 6.02” (153mm)
Width: 3.04” (77.4mm)
Height: 0.98” (25mm)

Packaging
Weight: 0.57 lb (260g)
Length: 6.99” (177.75mm)
Width: 3.99” (101.5mm)
Height: 1.71” (43.5mm)

Certifications
FCC
IC

Package Contents
1 – FitController
1 – Screw Position Idenifier
1 – Wall Mount Screw Kit
(Excludes Power Adapter)

Warranty
1 Year
