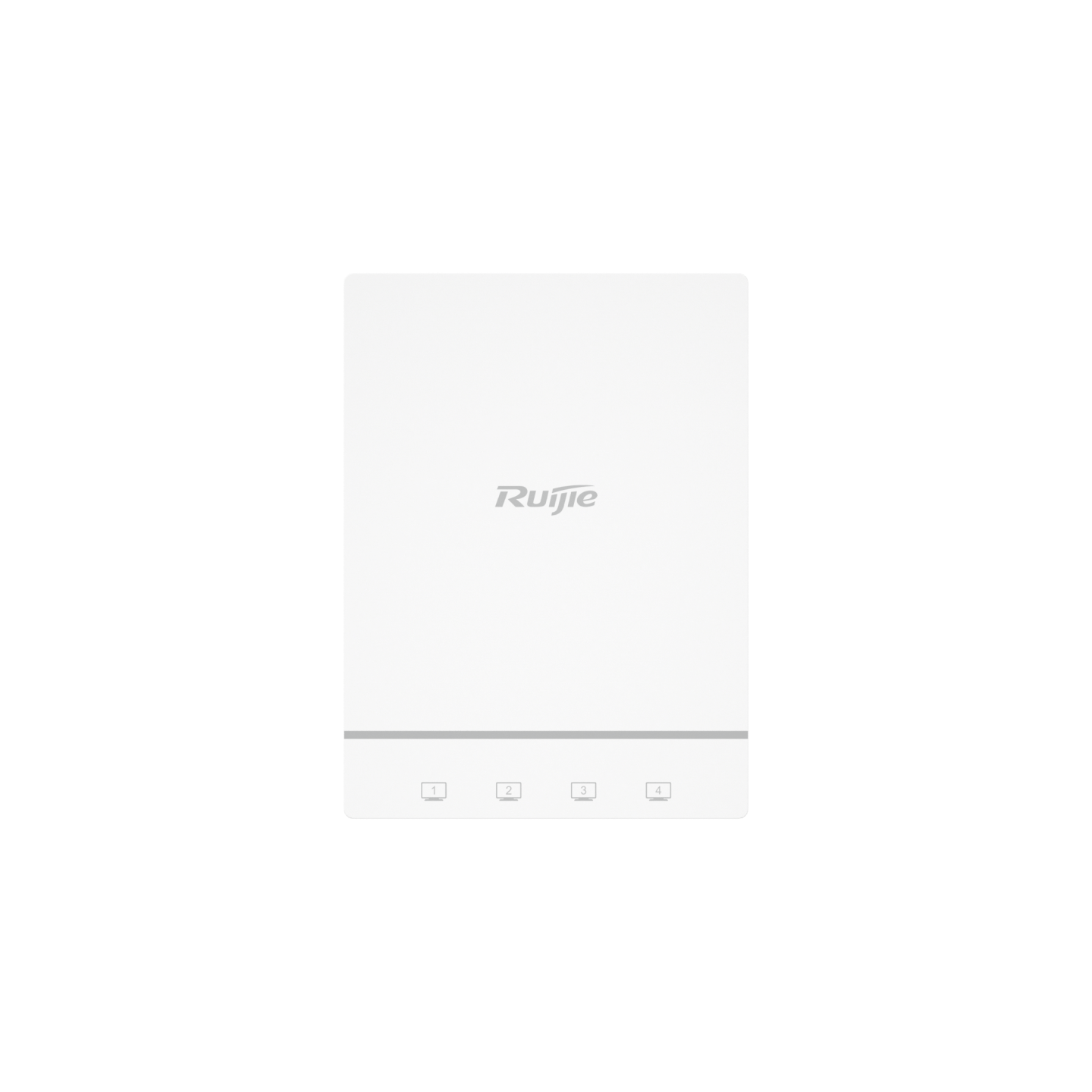

RG-AP180(V3) Wi-Fi 6 Dual-Radio 2976 Mbps Indoor Wall Plate Access Point, 1Gbps Ethernet Port

802.11n

Four spatial streams

●     Radio 1 – 2.4 GHz: 2x2 MIMO, two spatial streams

●     Radio 2 – 5 GHz: 2x2 MIMO, two spatial streams

Channels:

●     Radio 1 – 2.4 GHz: 20 MHz and 40 MHz

●     Radio 2 – 5 GHz: 20 MHz and 40 MHz

Combined peak data rate: 600 Mbps

●     Radio 1 – 2.4 GHz: 6.5 Mbps to 300 Mbps (MCS0 to MCS15 )

●     Radio 2 – 5 GHz: 6.5 Mbps to 300 Mbps (MCS0 to MCS15)

Radio technologies: Orthogonal Frequency-Division Multiplexing (OFDM)

Modulation types: BPSK, QPSK, 16-QAM, 64-QAM

Packet aggregation:

●     Aggregate MAC Protocol Data Unit (A-MPDU)

●     Aggregate MAC Service Data Unit (A-MSDU)

Dynamic Frequency Selection (DFS)

Cyclic Delay/Shift Diversity (CDD/CSD)

Maximum Ratio Combining (MRC)

Space-Time Block Coding (STBC)

Low-Density Parity Check (LDPC)

Transmit beam-forming (TxBF)

802.11ac

Two spatial streams

●     Radio 2 – 5 GHz: 2x2 MIMO, two spatial streams

Channels:

●     Radio 2 – 5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz

Combined peak data rate: 1.732 Gbps

●     Radio 2 – 5 GHz: 6.5 Mbps to 1.732 Gbps (MCS0 to MCS9)

Radio technologies: Orthogonal Frequency-Division Multiplexing (OFDM)

Modulation types: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM

Packet aggregation:

●     Aggregate MAC Protocol Data Unit (A-MPDU)

●     Aggregate MAC Service Data Unit (A-MSDU)

Dynamic Frequency Selection (DFS)

Cyclic Delay/Shift Diversity (CDD/CSD)

Maximum Ratio Combining (MRC)

Space-Time Block Coding (STBC)

Low-Density Parity Check (LDPC)

Transmit beam-forming (TxBF)

802.11ax

Four spatial streams

●     Radio 1 – 2.4 GHz: 2x2 uplink/downlink MU-MIMO, two spatial streams

●     Radio 2 – 5 GHz: 2x2 uplink/downlink MU-MIMO, two spatial streams

Channels:

●     Radio 1 – 2.4 GHz: 20 MHz and 40 MHz

●     Radio 2 – 5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz

Combined peak data rate: 2.976 Gbps:

●     Radio 1 – 2.4 GHz: 8.6 Mbps to 0.574 Gbps (MCS0 to MCS11)

●     Radio 2 – 5 GHz: 8.6 Mbps to 2.402 Gbps (MCS0 to MCS11)

Radio technologies: uplink/downlink Orthogonal Frequency-Division Multiple Access (OFDMA)

Modulation types: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM

Packet aggregation:

●     Aggregate MAC Protocol Data Unit (A-MPDU)

●     Aggregate MAC Service Data Unit (A-MSDU)

Dynamic Frequency Selection (DFS)

Cyclic Delay/Shift Diversity (CDD/CSD)

Maximum Ratio Combining (MRC)

Space-Time Block Coding (STBC)

Low-Density Parity Check (LDPC)

Transmit beam-forming (TxBF)

WPA3

Antenna

Wi-Fi

●     2.4 GHz: two built-in omnidirectional antennas, the max. antenna gain is 2 dBi.

●     5 GHz: two built-in omnidirectional antennas, the max. antenna gain is 2 dBi.

Bluetooth

●     One integrated vertically polarized omnidirectional antenna, the max. antenna gain is 2 dBi.

Port

Uplink: 1 x 10/100/1000Base-T auto-negotiation RJ45 Ethernet port, 802.3af/at-compliant PoE

Downlink: 4 x 10/100/1000Base-T auto-negotiation RJ45 Ethernet ports

1 x micro USB console port (serial console port)

1 x Bluetooth 5.0

Status LED

1 x multi-color system status LED

●     AP power-on status

●     Software initialization status and upgrade status

●     Uplink service interface status

●     CAPWAP tunnel timeout

●     Specific AP locating

Button

1 x Reset button

●     Press the button for shorter than 2 seconds. Then the device restarts.

●      Press the button for longer than 5 seconds. Then the device restores to factory settings.

Dimensions (W x D x H)

Main unit: 86 mm x 116 mm x 43 mm (3.39 in. x 4.57 in. x 1.70 in.)

Shipping: 128 mm x 96 mm x 59 mm (5.04 in. x 3.78 in. x 2.33 in.)

Weight

Main unit: 0.22 kg (0.49 lbs)

Shipping: 0.31 kg (0.68 lbs)

Mounting

Mounting in 86 mm x 86 mm junction box

Input power supply

The AP supports the following two power supply modes:

●     12 V DC/1 A power input over DC connector: The DC connector accepts 2.1 mm/5.5 mm center-positive circular plug. A DC power supply needs to be purchased independently.

●     PoE input over the backplane interface: compliance with 802.3af/at standard (PoE/PoE+)

Note: If both DC power and PoE are available, DC power is preferred.

Power consumption

Maximum power consumption: 10 W

●     DC power: 10 W

●     802.3at (PoE+): 10 W

●     802.3af (PoE): 10 W

●     Idle mode: 3.5 W

Environment

Storage temperature: –40°C to +70°C (–40°F to +158°F)

Storage humidity: 5% RH to 95% RH (non-condensing)

Operating temperature: –10°C to +45°C (14°F to 113°F)

Operating humidity: 5% RH to 95% RH (non-condensing)

At an altitude between 3,000 m (9,842.52 ft.) and 5,000 m (16,404.20 ft.), every time the altitude increases by 166 m (546 ft.), the maximum temperature decreases by 1°C (1.8°F).

Mean Time Between Failure (MTBF)

200,000 hours (22 years) at the operating temperature of 25°C (77°F)

System memory

RAM: 2 GB

SPI: 8 MB

Nand: 128 MB

Transmit power

2.4 GHz

●     Max. transmit power: +21 dBm (126 mW)

●     Minimum transmit power: +8 dBm (6.31 mW)

5 GHz

●     Max. transmit power: +21 dBm (126 mW)

●     Minimum transmit power: +8 dBm (6.31 mW)

Note: The transmit power adjusted in percentage. The transmit power is limited by local regulatory requirements
