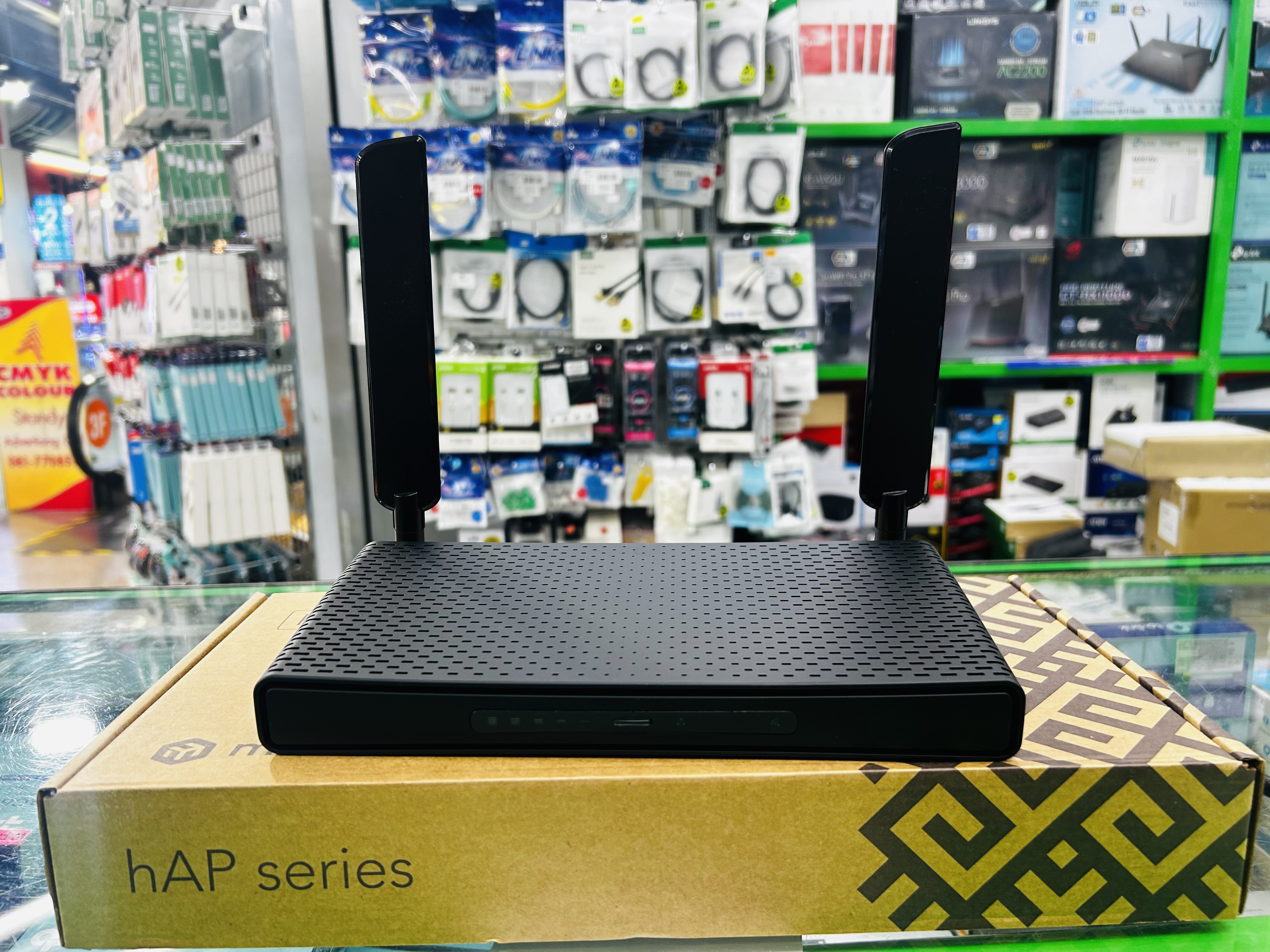

Mikrotik hAP ax3 C53UiG+5HPaxD2HPaxD ROS Lv5 WIFI-6, 4 Port Gigabit, 1 Port 2.5G

Product Specification

Overview

Mikrotik hAP ax3 C53UiG+5HPaxD2HPaxD

CPU Quad-core ARM 64bit RAM 1GB Storage 128 MB
กระจาสัญญาณ WIFI มาตรฐาน WIFI-6 ,พร้อม 4 Port Gigabit และ 1 Port ความเร็ว 2.5G, Port USB 3.0

รองรับ POE In/Out แบบ Passive 24VDC

RouterOS License Level 5

Product code

C53UiG+5HPaxD2HPaxD

Architecture

ARM 64bit

CPU

IPQ-6010

CPU core count

4

CPU nominal frequency

auto (864 - 1800) MHz

RouterOS license

6

Operating System

RouterOS v7

Size of RAM

1 GB

Storage size

128 MB

Storage type

NAND

MTBF

Approximately 200'000 hours at 25C

Tested ambient temperature

-40°C to 70°C

Wireless 2.4 GHz Max data rate

574 Mbit/s

Wireless 2.4 GHz number of chains

2

Wireless 2.4 GHz standards

802.11b/g/n/ax

Antenna gain dBi for 2.4 GHz

3.3

Wireless 2.4 GHz chip model

QCN-5022

Wireless 2.4 GHz generation

Wi-Fi 6

Wireless 5 GHz Max data rate

1200 Mbit/s

Wireless 5 GHz number of chains

2

Wireless 5 GHz standards

802.11a/n/ac/ax

Antenna gain dBi for 5 GHz

5.5

Wireless 5 GHz chip model

QCN-5052

Wireless 5 GHz generation

Wi-Fi 6

WiFi speed

AX1800

10/100/1000 Ethernet ports

4

Number of 1G Ethernet ports with PoE-out

1

Number of 2.5G Ethernet ports

1

Number of USB ports

1

USB slot type

USB 3.0 type A

Max USB current (A)

1

Number of DC inputs

2 (DC jack, PoE-IN)

DC jack input Voltage

12-28 V

Max power consumption

38 W

Max power consumption without attachments

15 W

Cooling type

Passive

PoE in

Passive PoE

PoE in input Voltage

18-28 V

PoE-out ports

Ether 1

PoE out

Passive PoE

Max out per port output (input 18-30 V)

0.625 A

Max total out (A)

0.625 A

Total output current

0.625

Total output power

15

Certification

CE, FCC, IC, EAC, ROHS

Mode button

Yes

Wireless specifications
