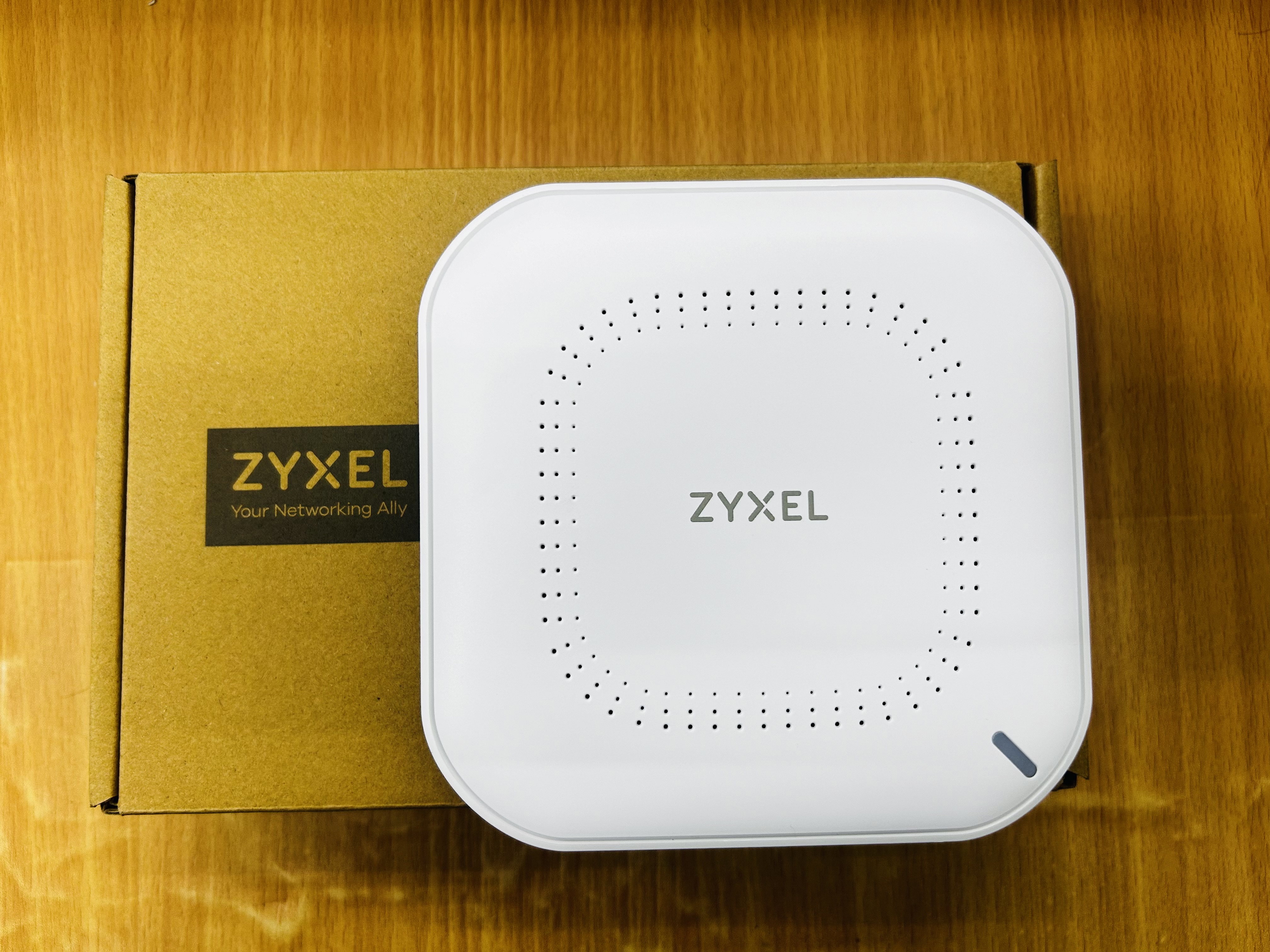

Zyxel NWA1123AC V3 AC1200 WiFi5 Wave 2 Dual-Radio NebulaFlex Access Point

WirelessStandardIEEE802.11 ac/n/g/b/aMIMOMU-MIMOWireless speed2.4 GHz:

• 300Mbps

5 GHz:

• 866Mbps

Frequency band2.4 GHz

• USA (FCC): 2.412 to 2.462 GHz
• Europe (ETSI): 2.412 to 2.472 GHz

5 GHz

• USA (FCC): 5.15 to 5.25 GHz; 5.725 to 5.850 GHz
• European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz

Bandwidth20-, 40- and 80-MHzConducted typical transmit output power*1
(limited by local regulatory requirements)US (2.4GHz/5GHz)

• 23/23dBm

EU (2.4GHz/5GHz)

• 19/23dBm

RF DesignAntenna type2x2 MIMO Embedded AntennaAntenna gain2.4GHz

• 3 dBi

5GHz

• 4 dBi

Minimum receive sensitivityUp to -99 dBmWLAN featureBand SteeringYesWDS/Mesh*2YesFast roamingPre-authentication, PMK caching and 802.11r/k/vDCSYesLoad balancingYesSecurityEncryption

• WEP
• WPA
• WPA2-PSK
• WPA3

Authentication

• WPA
• WPA2-Enterprise
• EAP
• IEEE 802.1X
• RADIUS authentication

Access management

• L2-isolation
• MAC filtering

NetworkingIPv6YesVLANsYesWMMYesU-APSDYesDiffServ markingYesManagementOperating mode

• Cloud managed
• standalone

ZON Utility

• Discovery of Zyxel switches, APs and gateways
• Centralized and batch configurations
  • IP configuration
  • IP renew
  • Device reboot
  • Device locating
  • Web GUI access
  • Firmware upgrade
  • Password configuration

Zyxel Wireless Optimizer

• WiFi AP planning
• WiFi coverage detection
• Wireless health management

Web UI/ CLIYesSNMPYesPhysical SpecificationsItemDimensions (WxDxH)(mm/in.)
140 x 140 x 37.5 /5.51 x 5.51 x 1.48
Weight (g/lb.)
249/0.55PackingDimensions (WxDxH)(mm/in.)
240 x 155 x 60 / 9.45 x 6.10 x 2.36
Weight (g/lb.)
560/1.23Included accessories

• Power adapter
• Ceiling-mount plate

MTBF(hr)630,794Physical InterfacesEthernet port1x 10/100/1000M LANPower

• Input: AC 100 - 240V - 50/60 Hz 0.3A; Output: DC +12V 1A
• PoE (802.3af): power draw 11 W

Environmental SpecificationsOperatingTemperature
0°C to 50°C/32°F to 122°F
Humidity
10% to 90% (non-condensing)StorageTemperature
-40°C to 70°C/-40°F to 158°F
Humidity
10% to 90% (non-condensing)CertificationsRadio

• FCC Part 15C
• FCC Part 15E
• ETSI EN 300 328
• EN 301 893
• LP0002
• EN 60601-1-2

EMC

• FCC Part 15B
• EN 301 489-1
• EN 301 489-17
• EN55022
• EN55024
• EN61000-3-2/-3
• BSMI CNS13438

Safety

• EN 60950-1
• IEC 60950-1
• BSMI CNS14336-1
