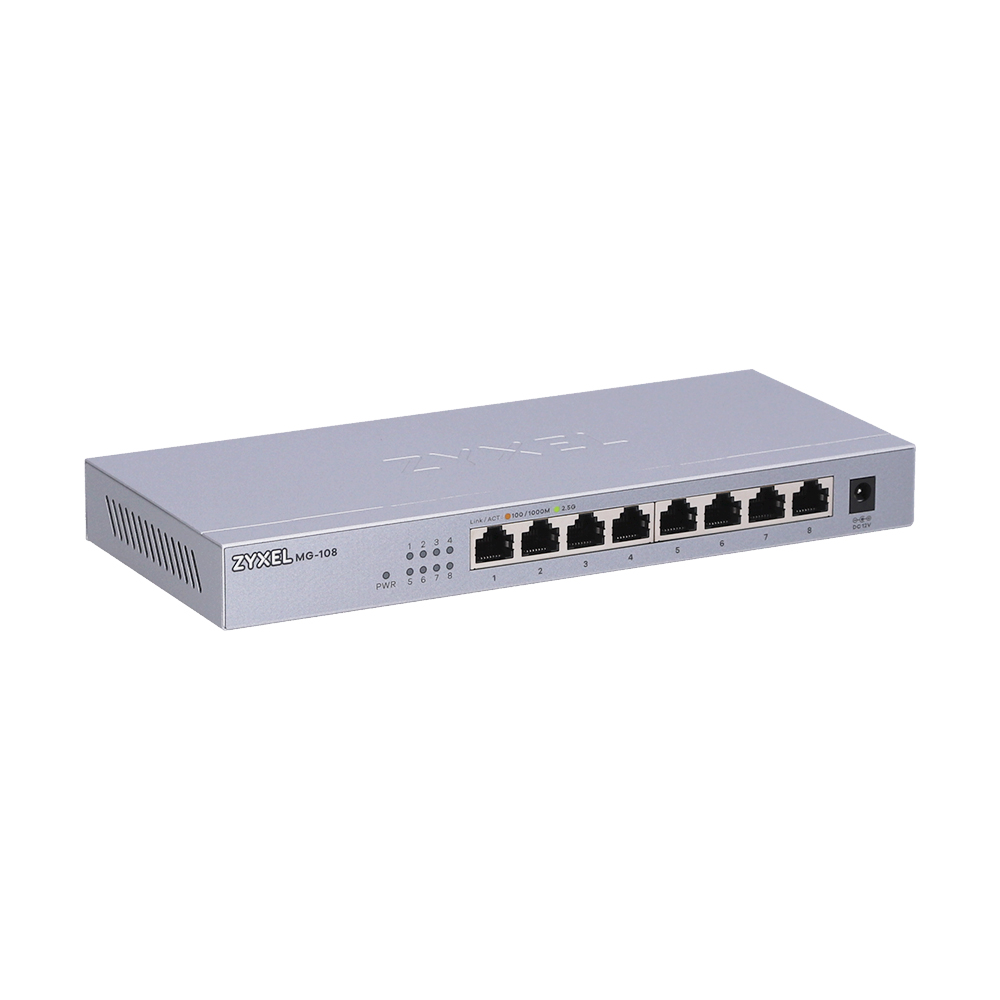

ZYXEL SWITCH HUB 8 PORT (MG108) 2.5 GbE UNMANAGED SWITCH

Standard

• IEEE 802.3u 100BASE-TX Fast Ethernet
• IEEE802.3ab 1000BASE-T
• IEEE 802.3bz 2.5GBASE-T
• IEEE 802.3x full duplex operation and flow control
• IEEE 802.1p QoS
• IEEE 802.3 Nway auto-negotiation

Performance

• Switching capacity:
  • MG-108: 40 Gbps
• Switching forwarding rate:
  • MG-108: 29.8 Mpps
• MAC address table: 16 K
• Packet buffer: 12Mb
• Jumbo frame supports up to 12 KB

Features

• 100M, 1G and 2.5G ports for multi speed
• Fanless and quiet
• Plug and Play, Easy use and Quick Install
• Desktop and Wall mount
• Auto-MDI/MDIX in all ports

Interface

• MG-108:Eight RJ-45 100/1000/2500 Mbps Ethernet ports with auto MDI/MDIX support

LED Indicator

• PWR: Power
• Per port: Link/Activity
  • Amber: 100/1000 Mbps
  • Green: 2.5 Gbps
• Power Supply
  • AC-to-DC external power adapter
  • Input: 100 - 240V AC, 50/60 Hz
  • Output: 12V DC/1.5A
• Power Consumption
  • MG-108: 12.24 watt max.
