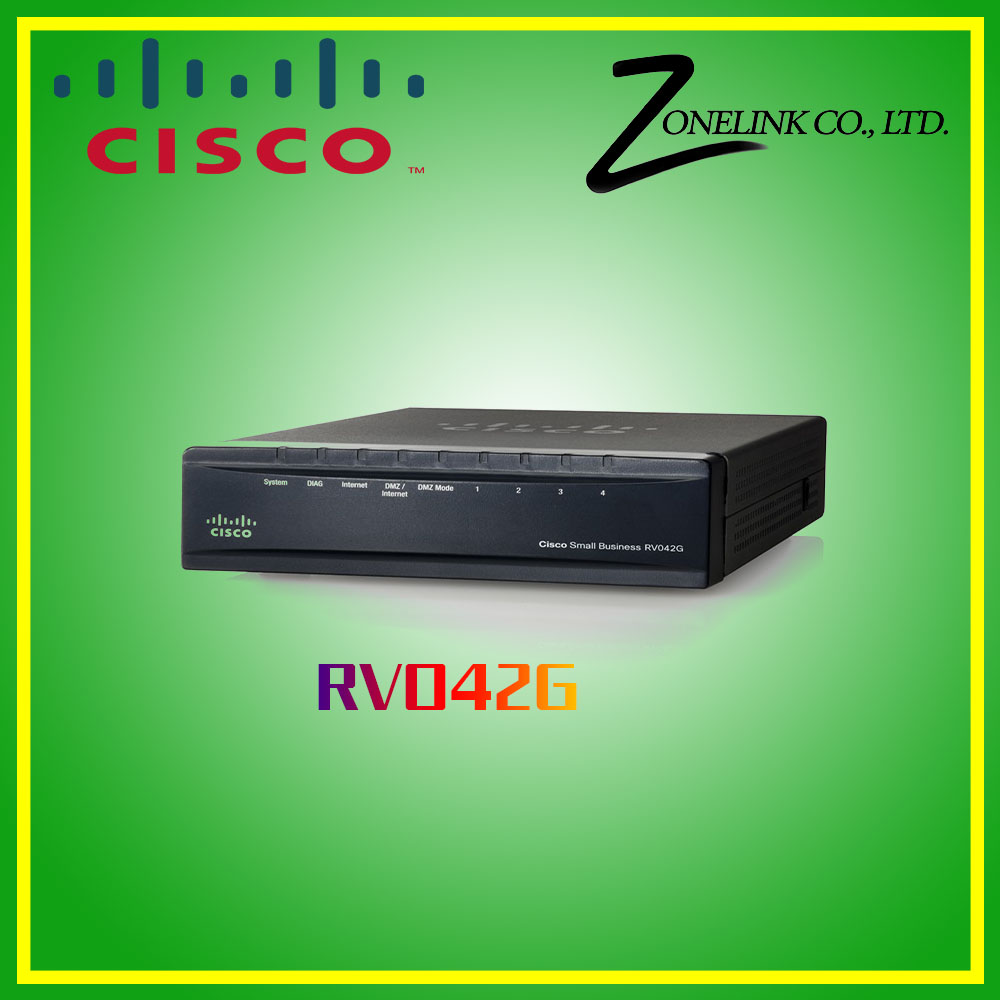

Cisco RV042G

 Cisco RV042G Dual Gigabit WAN Router includes:

• Dual Gigabit Ethernet WAN ports for load balancing and business continuity
• Built-in 4-port Gigabit Ethernet switch
• Strong security: Proven stateful packet inspection (SPI) firewall and hardware encryption
• High capacity, high-performance, IP Security (IPsec) VPN capabilities
• Intuitive, browser-based device manager and setup wizards.

• Specifications
  Dual WAN	Configurable for Smartlink backup or load balancing
  Standards	• 802.3, 802.3u • IPv4 (RFC 791) • IPv6 (RFC 2460)
  Network protocols	• Dynamic Host Configuration Protocol (DHCP) server, DHCP client, DHCP relay agent • Static IP • Point-to-Point Protocol over Ethernet (PPPoE) • Point-to-Point Tunneling Protocol (PPTP) • Transparent bridge • DNS relay, Dynamic DNS (DynDNS, 3322) • IPv6
  Routing protocols	• Static • Routing Information Protocol (RIP) v1, v2, and RIP for IPv6 (RIPng)
  Network Address Translation (NAT)	• Port Address Translation (PAT) • Network Address Port Translation (NAPT), NAT traversal, one-to-one NAT
  Protocol binding	Protocols can be bound to a specific WAN port for load balancing
  Network edge (DMZ)	DMZ port, DMZ host





  Security
  Firewall	SPI, denial of service (DoS), ping of death, SYN flood, land attack, IP spoofing, email alert for hacker attack
  Access rules	Up to 50 entries
  Port forwarding	Up to 30 entries
  Port triggering	Up to 30 entries
  Blocking	Java, cookies, ActiveX, HTTP proxy
  Content filtering	Static URL blocking or keyword blocking
  Secure management	HTTPS, username/password, password complexity
  VLAN	Port-based VLANs
  VPN
  IPsec	50 IPsec site-to-site tunnels for branch office connectivity
  QuickVPN	50 QuickVPN tunnels for remote client access
  PPTP	5 PPTP tunnels for remote access
  Encryption	Data Encryption Standard (DES), Triple Data Encryption Standard (3DES), and Advanced Encryption Standard (AES) encryption; AES-128, AES-192, AES-256
  Authentication	MD5/SHA1 authentication
  IPsec NAT traversal	Supported for gateway-to-gateway and client-to-gateway tunnels
  VPN pass-through	PPTP, Layer 2 Tunneling Protocol (L2TP), IPsec
  Advanced VPN	Dead peer detection (DPD), Internet Key Exchange (IKE), split DNS, VPN backup
  Quality of Service (QoS)
  Prioritization types	Application-based priority on WAN port
  Service-based QoS	Supports rate control or priority
  Rate control	Upstream/downstream bandwidth can be configured per service
  Priority	Each service can be mapped to one of 3 priority levels
  Performance
  NAT throughput	800 Mbps
  IPsec VPN throughput	75 Mbps
  Configuration
  Web user interface	Simple browser-based device manager (HTTP/HTTPS)
  Management
  Management protocols	Web browser, Simple Network Management Protocol (SNMP) v1 and v2c, Bonjour
  Event logging	Syslog, email alerts, VPN tunnel status monitor
  Upgradability	Firmware upgradable through web browser, imported/exported configuration file
  Migration	Migration utility available to convert the RV042 config file to a RV042G config file
