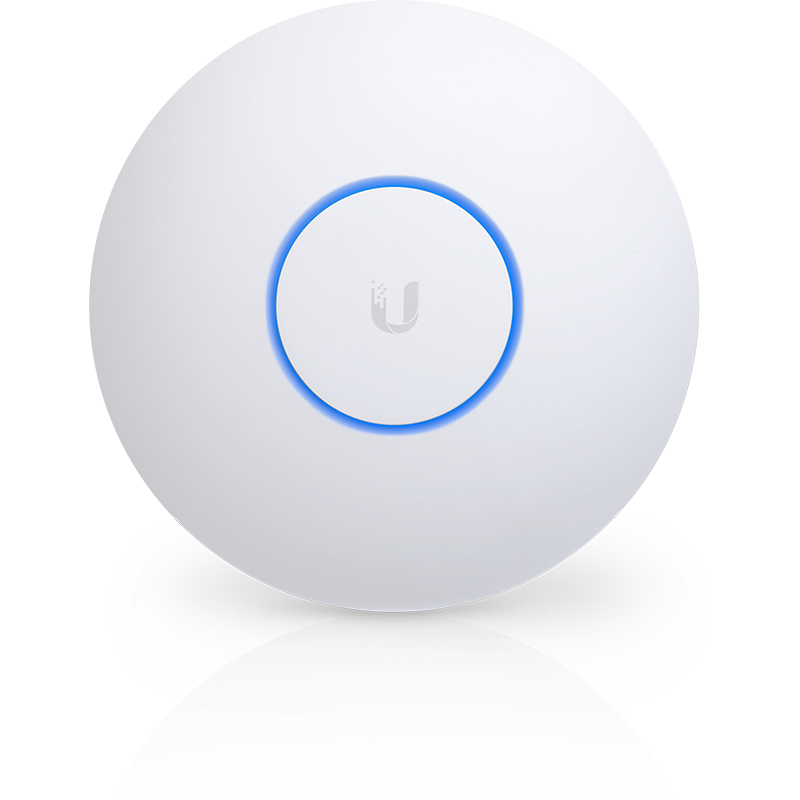

UAP-AC-SHD

UAP-AC-SHD
Specifications
UAP-AC-SHD Dimensions 220 x 220 x 48.1 mm (8.66 x 8.66 x 1.89")
Weight With Mounting Kits 700 g (1.54 lb) 830 g (1.83 lb)
Networking Interface (2) 10/100/1000 Ethernet Ports
Buttons Reset
Power Method 802.3at PoE+
Supported Voltage Range 44 to 57VDC
Power Supply UniFi Switch (PoE)
Power Save Supported
Beamforming Supported
Maximum Power Consumption 20W
Radios 2.4 GHz, 5 GHz, Security
TX Power 2.4 GHz 5 GHz 6-25 dBm 6-25 dBm
Antennas 2.4 GHz 5 GHz (2) Dual-Port, Dual-Polarity Antennas, 6 dBi each (2) Dual-Port, Dual-Polarity Antennas, 6 dBi each
Wi-Fi Standards 802.11 a/b/g/n/r/k/v/ac/ac-wave2
Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) 802.11w (PMF)
BSSID Up to 8 per Radio
Mounting Wall/Ceiling (Kits Included)
Operating Temperature -10 to 70° C (14 to 158° F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC
Advanced Traffic Management
VLAN 802.1Q
Advanced QoS Per-User Rate Limiting
Guest Traffic Isolation Supported
WMM Voice, Video, Best Effort, and Background
Concurrent Clients 1000+
Supported Data Rates (Mbps) Standard Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
802.11ac 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80)
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
