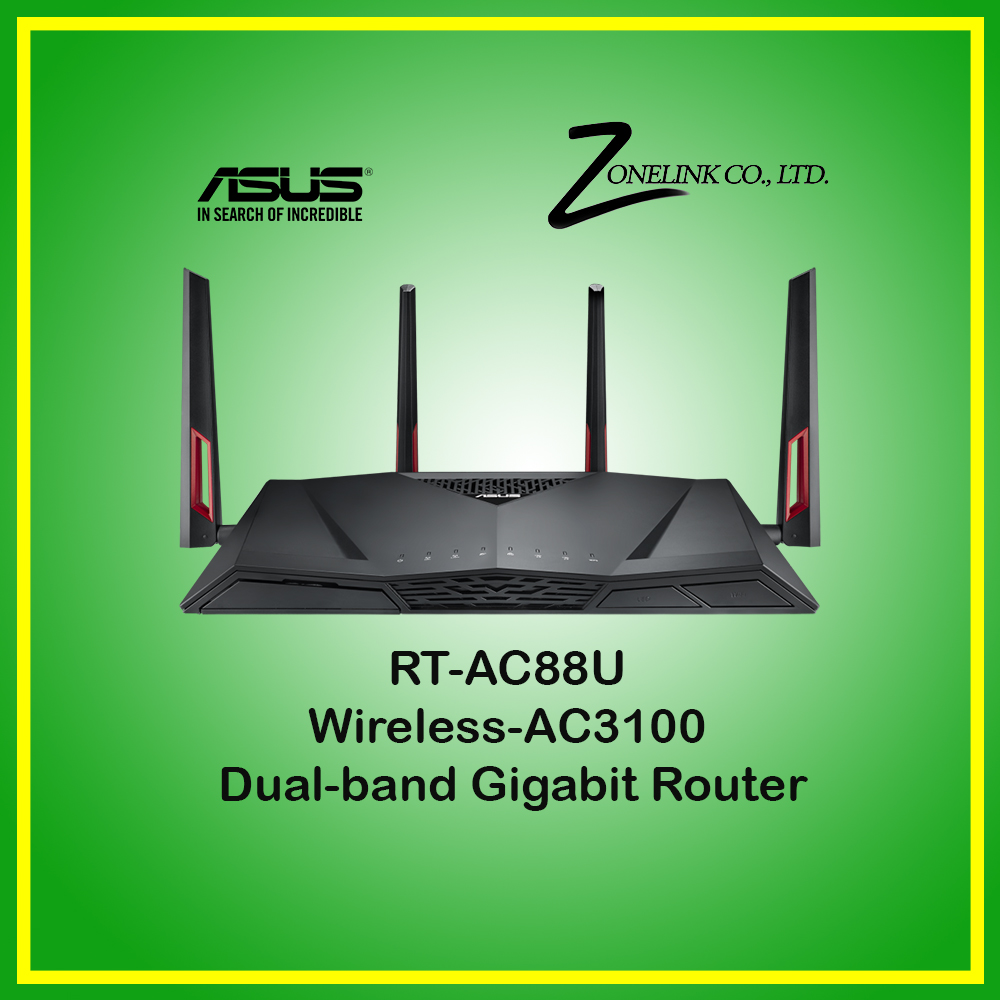

RT-AC88U

IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IPv4, IPv6

AC3100 ultimate AC performance : 1000+2167 Mbps

Very large homes

802.11a : 6,9,12,18,24,36,48,54 Mbps
802.11b : 1, 2, 5.5, 11 Mbps
802.11g : 6,9,12,18,24,36,48,54 Mbps
802.11n : up to 600 Mbps
802.11ac : up to 1734 Mbps
1024QAM (2.4GHz) : up to 1000 Mbps
1024QAM (5GHz) : up to2167 Mbps

External antenna x 4

MIMO technology
2.4 GHz 4 x 4
5 GHz 4 x 4

1.4 GHz dual-core processor

128 MB Flash
512 MB RAM

Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80 MHz bandwidth

2.4 GHz / 5 GHz

64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , WPS support

Access control：Parental control, Network service filter, URL filter, Port filter

UPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, SNMP, NTP Client, DDNS, Port Trigger, Port Forwarding, DMZ, System Event Log

Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP

Router setup wizard; Firmware restoration; Device discovary; printer setup utility

RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 8
USB 2.0 x 1
USB 3.0 x 1

Link Aggregation

MU-MIMO
Traffic Analyzer
Adaptive QoS
AiProtection
Parental Control
Guest Network : 2.4 GHz x 3, 5 GHz x 3
VPN server : IPSec Pass-Through, PPTP Pass-Through, L2TP Pass-Through, PPTP Server, OpenVPN Server
VPN client : PPTP client, L2TP client, OpenVPN client
Mac OS Backup
Enhanced media server (AiPlayer app compatible)
- Image : Jpeg
- Audio : mp3, wma, wav, pcm, mp4, lpcm, ogg
- Video : asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov
AiCloud personal cloud service
3G/4G data sharing
Printer Server
- Multifunctional printer support (Windows only)
- LPR protocol support
Download Master
- Support bt, nzb, http, ed2k
- Support encryption, DHT, PEX and magnet link
- Upload and download bandwidth control
- Download scheduling
AiDisk file server
- Samba and FTP server with account management
Dual WAN
IPTV support
Roaming Assist

WPS Button, Reset Button, Power Button, Wireless on/off Button, LED on/off Button

Power x 1
Wi-Fi x 2
WAN x 1
USB x 2
WPS x 1
LAN x 1

AC Input : 110V~240V(50~60Hz)
DC Output : 19 V with max. 2.37 A current

11.8 x 7.4 x 3.3 ~ inch (WxDxH) (Without Bezel)



Wireless router mode
Access point mode
Media bridge mode
