Models
GS1100-10HP
GS1100-16
GS1100-24
GS1100-24E
Port Density
Total port count 10 16 26 24
1000BASE-T - 16 24 24
1000BASE-T PoE 8 - - -
Open SFP slot (GbE) 2 - 2 -
Performance
Switching capacity (Gbps) 20 32 52 48
Switching forwarding rate (Mpps) 14.88 23.8 38.7 35.7
Packet buffer (byte) 256 K 256 K 525 K 525 K
MAC address 8 K 8 K 8 K 8 K
Jumbo frame (byte) 9 K 9 K 10 K 10 K
Auto MDI/MDI-X Yes Yes Yes Yes
802.1p CoS Yes Yes Yes Yes
VLAN packet pass-through Yes Yes Yes Yes
Power
Input voltage 100 - 240 V AC, 50/60 Hz 100 - 240 V AC, 50/60 Hz 100 - 240 V AC, 50/60 Hz 100 - 240 V AC, 50/60 Hz
Power supply External Internal Internal Internal
Maximum power consumption (watt) 156.1 8.1 14.7 14.4
PoE power budget (watt) 130 - - -
Physical Specifications
Dimensions (WxDxH)(mm/in.) 250 x 104 x 27/ 9.84 x 4.10 x 1.06 215 x 133 x 42/ 8.46 x 5.24 x 1.65 441 x 131 x 44/ 17.36 x 5.16 x 1.73 267 x 162 x 42/ 10.51 x 6.38 x 1.65
Weight (kg/lb.) 0.73/1.6 0.92/2.28 1.82/4.01 1.53/3.37
Environmental Specifications
Operating temperature 0°C to 50°C/32°F to 122°F
Storage temperature -40°C to 70°C/-40°F to 158°F
Operating humidity 10% to 95%(non-condensing)
Storage humidity 10% to 95% (non-condensing)
MTBF (hr) 1,000,070 1,297,212 1,206,050 929,704
Heat dissipation (BTU/hr) 89.001 27.62 50.13 49.10
เงื่อนไขอื่นๆ

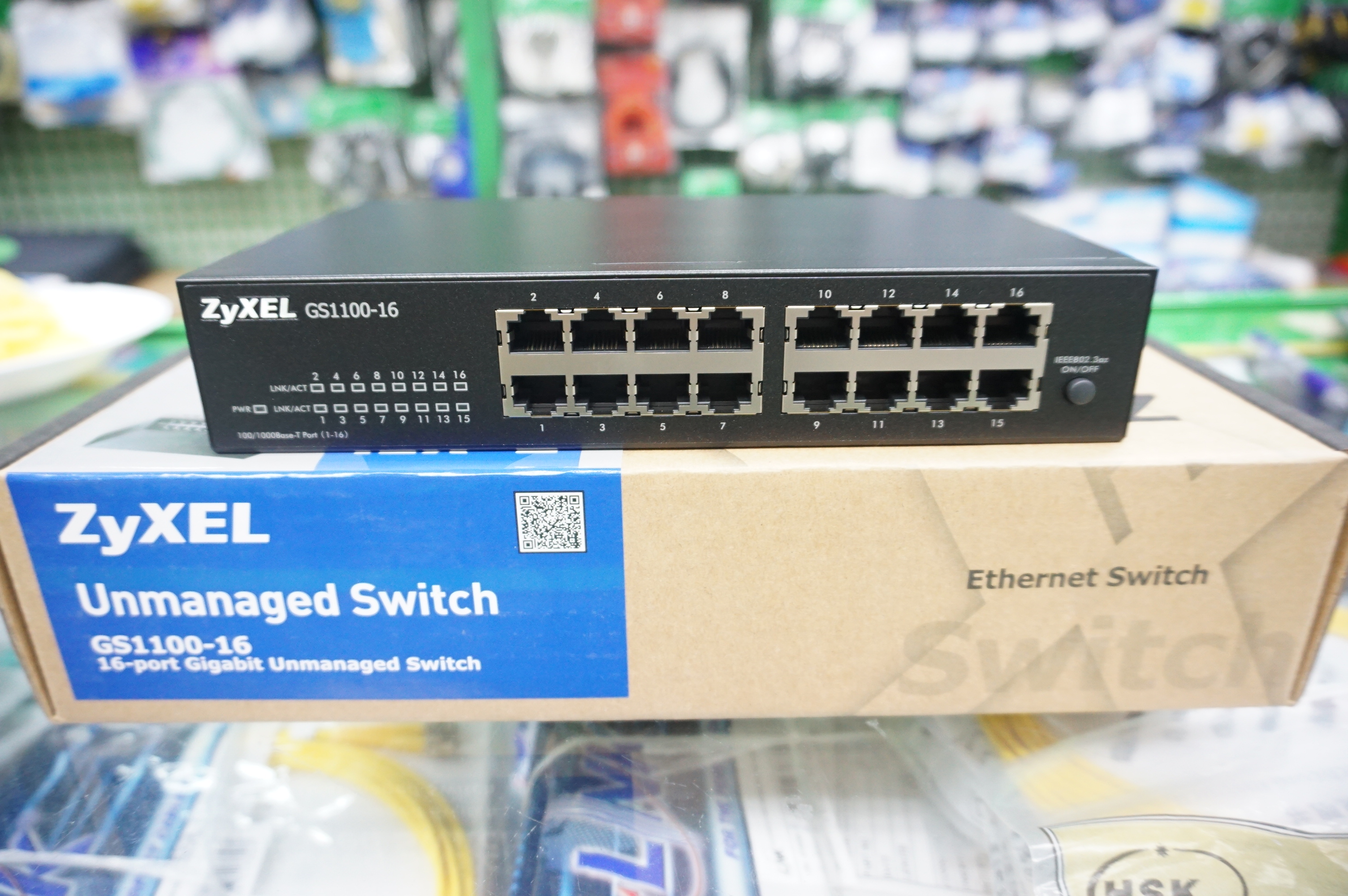

รายละเอียดสินค้า Gigabit Switching Hub 16 Port ZYXEL GS-1100-16 (8'')

Green networking
The GS1100 Series not only offers Gigabit Ethernet connectivity for next-generation network applications, but also power-saving functions for better energy efficiency. Capable of dynamically adjusting power output according to traffic, active links and cable length, the GS1100 Series can reduce energy consumption for lowered operating costs.



Traffic detection — Energy Efficient Ethernet (EEE) compliance
The IEEE 802.3az Energy Efficient Ethernet (EEE) feature automatically detects network traffic and adjusts power consumption dynamically, enabling the switch to reduce power consumption during low link utilization periods. The GS1100 Series comes with IEEE 802.3az on/off button to help reduce power consumption. This button allows users to keep the best performance without transmit impacted or to have green support of Energy Efficient Ethernet mode with a simple push of a button.



Inactive link detection
The inactive link detection function automatically reduces power usage when inactive links or devices are detected. The ZyXEL GS1100 Series can adjust power consumption according to link status and the number of active network devices.



Cable length detection
This green feature enables the switch to automatically detect the length of connected Ethernet cables and adjust power usage accordingly. The shorter the cable length, the less power it consumes.



Fanless design
The complete GS1100 Series comes in a fanless design that ensures silent operation in small or quiet office environments. The GS1100-10HP PoE model is specifically designed with an external power adapter that eliminates the need for an additional fan to cool down the device, making it perfect for quiet PoE deployments.

คุณสมบัติ Gigabit Switching Hub 16 Port ZYXEL GS-1100-16 (8'')

Brand ZyXEL
Model

GS-1100-16

Network Interface

16 x 1000BASE-T Auto MDI/MDI-X

Standards and Protocols

IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Ethernet
IEEE 802.3ab 1000BASE-T Ethernet
IEEE 802.3az EEE support
IEEE 802.3x flow control
IEEE 802.3z 1000BASE-X
IEEE 802.1p CoS

Switching Capacity

32 Gbps

MAC Address Table

8 K

Forwarding Rate

23.8 Mpps

Jumbo Frame

9 K

Packet Buffer Memory

256 K

MTBF

1,297,212

Power Supply

Internal 100 - 240 V AC, 50/60 Hz

Power Consumption

Max 8.1 Watt

Environment

Operating temperature : 0°C to 50°C/32°F to 122°F
Storage temperature : -40°C to 70°C/-40°F to 158°F
Operating humidity : 10% to 90% (non-condensing)
Storage humidity : 10% to 95% (non-condensing)

Certifications

CE, FCC, C-Tick, Class B
BSMI CNS13438
RoHS compliant
