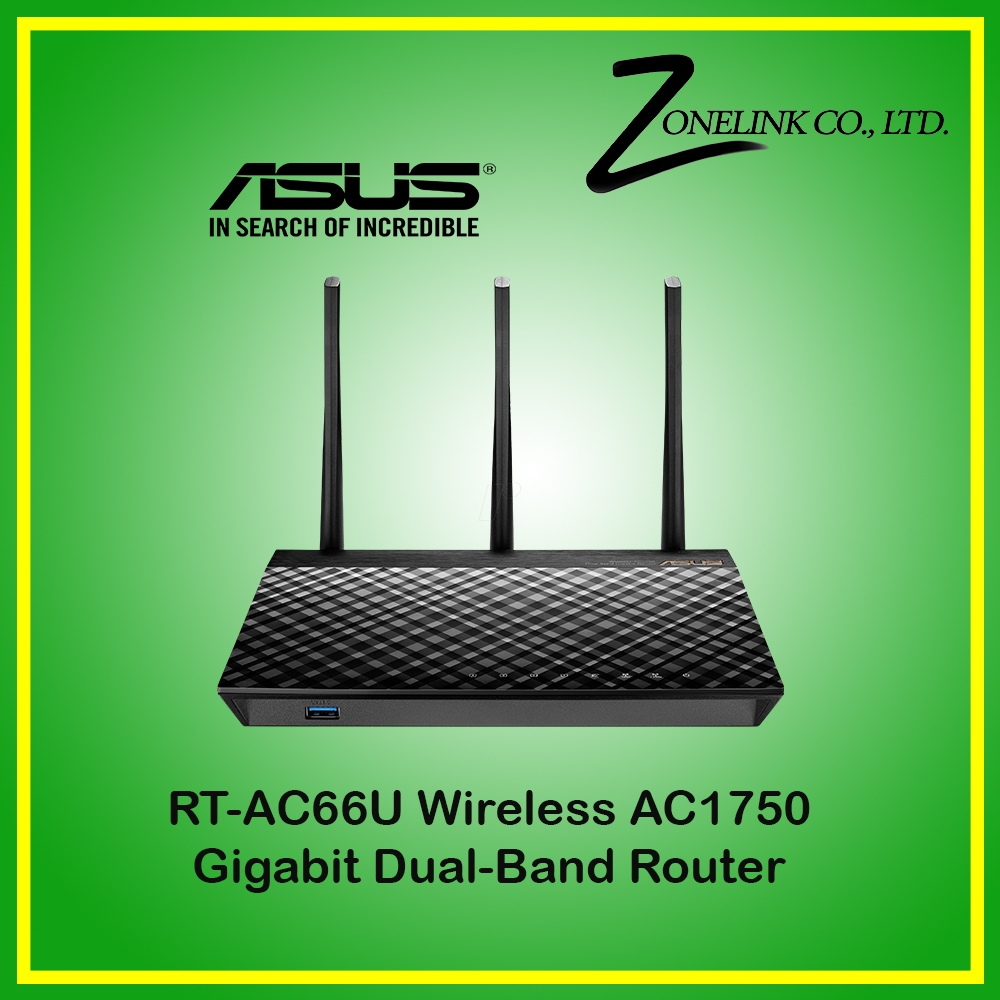

RT-AC66U 802.11ac Dual-Band Wireless-AC1750 Gigabit Router

IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.3u, IPv4, IPv6

AC1750 superior AC performance : 450+1300 Mbps

Large homes

802.11n : up to 450 Mbps
802.11ac : up to 1300 Mbps

Detachable antenna x 3

MIMO technology
2.4 GHz 3 x 3
5 GHz 3 x 3

128 MB Flash
256 MB RAM

2.4 GHz / 5 GHz

64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise

Firewall：SPI intrusion detection,DoS protection
Access control：Parental control, Network service filter, URL filter, Port filter

UPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Trigger, Port Forwarding, DMZ, Universal Repeater, System Event Log

Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP
Dual Link support
Multicast Proxy support
Multicast Rate Setting support

RJ45 for 10/100/1000 BaseT for WAN x 1, RJ45 for 10/100/1000 BaseT for LAN x 4, Support Ethernet and 802.3 with max. bit rate 10/100/1000 Mbps and auto cross-over function(MDI-X)
USB 2.0 x 2

SmartQoS
- WMM
- User definable rules for IP/MAC/Port
- Upload and download bandwidth management
- ACK/SYN/FIN/RST/ICMP with highest priority
Parental Control
Guest Network : 2.4 GHz x 3, 5 GHz x 3
VPN server : IPSec Pass-Through, PPTP Pass-Through, L2TP Pass-Through, PPTP Server, OpenVPN Server
VPN client : PPTP client, L2TP client, OpenVPN client
Enhanced media server (AiPlayer app compatible)
- Image : Jpeg
- Audio : mp3, wma, wav, pcm, mp4, lpcm, ogg
- Video : asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov
AiCloud personal cloud service
3G/4G data sharing
Printer Server
- Multifunctional printer support (Windows only)
- LPR protocol support
Download Master
- Support bt, nzb, http, ed2k
- Support encryption, DHT, PEX and magnet link
- Upload and download bandwidth control
- Download scheduling
AiDisk file server
- Samba and FTP server with account management
Dual WAN
IPTV support

WPS Button, Reset Button, Power Button

Power x 1
LAN x 4
WAN x 1
Wi-Fi x 2
USB x 1

AC Input : 110V~240V(50~60Hz)
DC Output : 19 V with max. 1.58 A current

Windows® 10
Windows® 8.1
Windows® 8 , 32bit/64bit
Windows® 7 , 32bit/64bit
Windows® Vista , 32bit/64bit
Windows® XP , 32bit/64bit
Mac OS X
Linux

207 x 148.8 x 35.5 ~ mm (WxDxH) g



RT-AC66U Dual Band 3x3 802.11AC Gigibit Router
Router stand
RJ-45 cable
Support CD (User manual and utility software)
Power adapter
Quick start guide
Warranty card

Wireless router mode
Range extender mode
Access point mode
Media bridge mode
